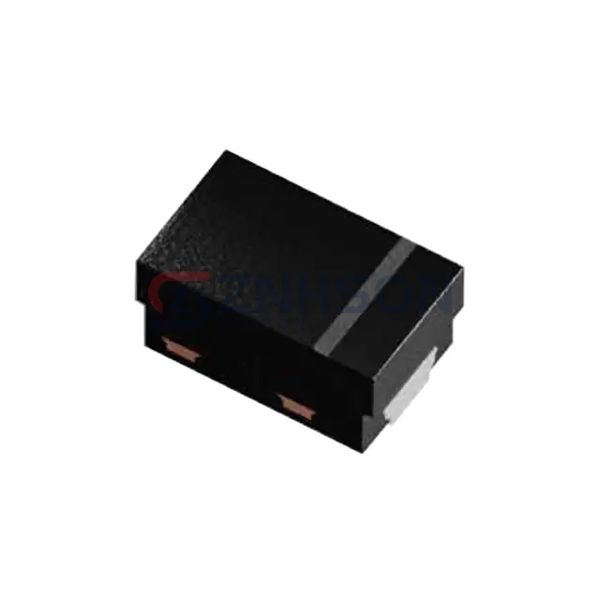

VESD05C1-HD1-G3-08
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
5V;IR=0.1UA;IP=8.7A;P=W;CD=81PF;
$0.47
Available to order
Reference Price (USD)
1+
$0.47000
500+
$0.4653
1000+
$0.4606
1500+
$0.4559
2000+
$0.4512
2500+
$0.4465
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VESD05C1-HD1-G3-08 by Vishay General Semiconductor - Diodes Division is a top-tier TVS diode designed for advanced circuit protection. Featuring ultra-low capacitance and high energy absorption, this diode is perfect for high-speed data lines and sensitive electronics. TVS diodes play a vital role in protecting equipment from lightning strikes, inductive load switching, and other transient threats. Common applications include network equipment, medical devices, and automotive systems. For instance, the VESD05C1-HD1-G3-08 can secure CAN bus lines in vehicles against voltage spikes. Rely on Vishay General Semiconductor - Diodes Division for cutting-edge TVS diode solutions.
Specifications
- Product Status: Active
- Type: Zener
- Unidirectional Channels: 1
- Bidirectional Channels: -
- Voltage - Reverse Standoff (Typ): 5V (Max)
- Voltage - Breakdown (Min): 7.1V
- Voltage - Clamping (Max) @ Ipp: 11.5V
- Current - Peak Pulse (10/1000µs): 8.7A (8/20µs)
- Power - Peak Pulse: 100W
- Power Line Protection: No
- Applications: General Purpose
- Capacitance @ Frequency: 67pF @ 1MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 0402 (1006 Metric)
- Supplier Device Package: DFN1006-2A
