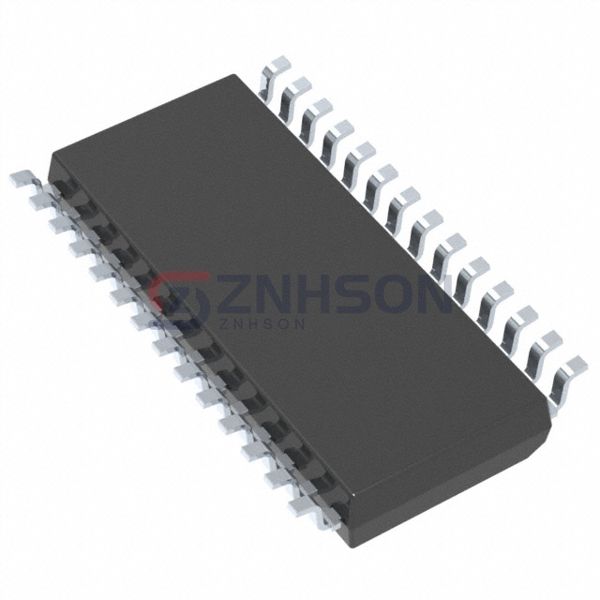

VNQ810P-E
STMicroelectronics
STMicroelectronics
IC PWR DRIVER N-CHANNEL 1:1 28SO
$0.00
Available to order
Reference Price (USD)
700+
$2.43107
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The VNQ810P-E Load Driver IC by STMicroelectronics is a versatile solution for modern power distribution challenges. Part of the PMIC family, this IC provides precise load driving capabilities with built-in safeguards like short-circuit and overvoltage protection. From smart home appliances to medical equipment, the VNQ810P-E delivers consistent performance. Its compact design and energy-saving features make it a favorite among engineers. Choose STMicroelectronics for ICs that combine power, precision, and protection in one advanced package.
Specifications
- Product Status: Obsolete
- Switch Type: General Purpose
- Number of Outputs: 4
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: On/Off
- Voltage - Load: 5.5V ~ 36V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 3.5A
- Rds On (Typ): 160mOhm (Max)
- Input Type: Non-Inverting
- Features: Auto Restart, Status Flag
- Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: 28-SO
- Package / Case: 28-SOIC (0.295", 7.50mm Width)
Related Products
STMicroelectronics
VNB14NV04
NXP USA Inc.
MC33880DWR2
Microchip Technology
T6819-TBQ
Texas Instruments
LM3543MX-H/NOPB
Texas Instruments
TPS2065DG4
Infineon Technologies

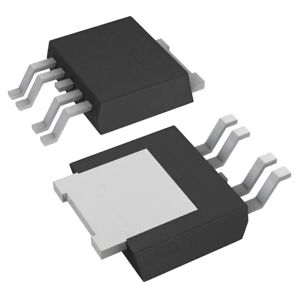

AUIPS6031RTRL
Microchip Technology
MIC94060BC6-TR
Vishay Siliconix

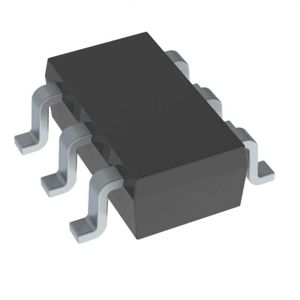

SI3865BDV-T1-E3
STMicroelectronics

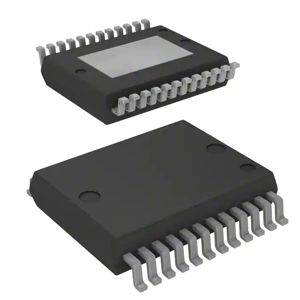

VNQ830PEPTR-E
