VS-12CWQ04FNTRLHM3
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE ARRAY SCHOTTKY 40V 6A DPAK
$1.31
Available to order
Reference Price (USD)
3,000+
$1.29178
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the VS-12CWQ04FNTRLHM3 diode rectifier array by Vishay General Semiconductor - Diodes Division, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Vishay General Semiconductor - Diodes Division delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 40 V
- Current - Average Rectified (Io) (per Diode): 6A
- Voltage - Forward (Vf) (Max) @ If: 680 mV @ 12 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 3 mA @ 40 V
- Operating Temperature - Junction: 150°C (Max)
- Mounting Type: Surface Mount

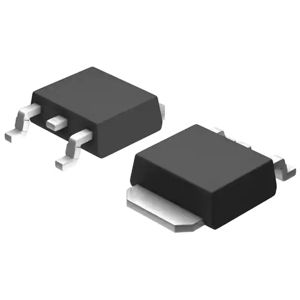

- Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package: D-PAK (TO-252AA)
Related Products
SMC Diode Solutions
84CNQ040
GeneSiC Semiconductor
MSRTA50060A
Vishay General Semiconductor - Diodes Division
FEPB16BTHE3_A/I
Nexperia USA Inc.
BAV170,215
Panjit International Inc.
SDM1060LCS_S2_00001
GeneSiC Semiconductor
MSRTA500140A
Taiwan Semiconductor Corporation
UG1005GH
Vishay General Semiconductor - Diodes Division

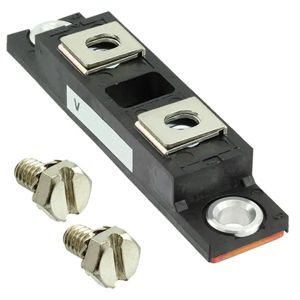

VS-409CNQ150PBF
