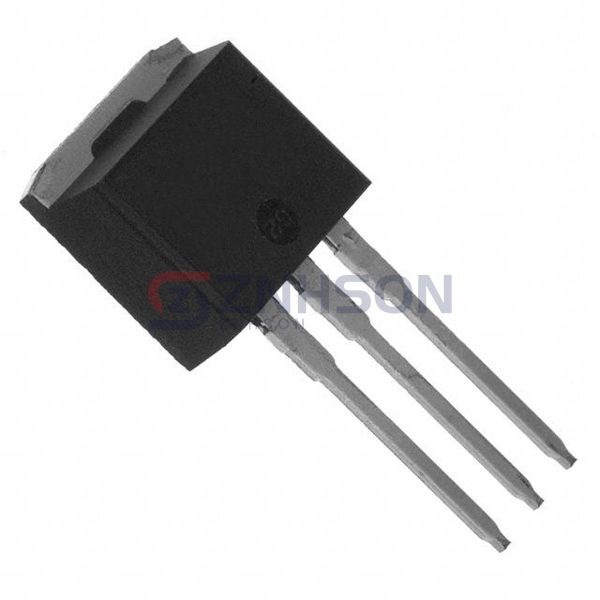

VS-15CTQ045-1-M3
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE SCHOTTKY 45V 7.5A TO262
$0.66
Available to order
Reference Price (USD)
1,000+
$0.60180
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Power your designs with the VS-15CTQ045-1-M3 diode rectifier array by Vishay General Semiconductor - Diodes Division, a flagship product in the Diodes - Rectifiers - Arrays subcategory. Featuring dual-diode common cathode/anode configurations, this versatile component excels in voltage doubling circuits and flyback converters. Its lead-free construction meets global environmental standards while maintaining robust performance in appliance controls and HVAC systems. Vishay General Semiconductor - Diodes Division delivers this industry-leading solution with full traceability and RoHS compliance.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 45 V
- Current - Average Rectified (Io) (per Diode): 7.5A
- Voltage - Forward (Vf) (Max) @ If: 550 mV @ 7.5 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 800 µA @ 45 V
- Operating Temperature - Junction: -55°C ~ 150°C
- Mounting Type: Through Hole
- Package / Case: TO-262-3 Long Leads, I²Pak, TO-262AA
- Supplier Device Package: TO-262AA
Related Products
Vishay General Semiconductor - Diodes Division
UGB10DCT-E3/81
Rohm Semiconductor
RBR15BGE60ATL
onsemi
SBRD81035CTLG-VF01
onsemi
NSVBAV23CLT1G
onsemi
DAP222M3T5G
Rohm Semiconductor
DAN202KFHT146
Vishay General Semiconductor - Diodes Division
VS-30CTQ045STRLHM3

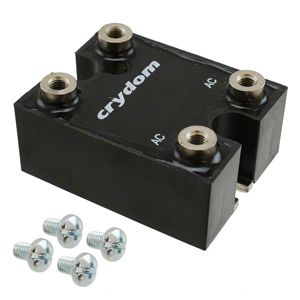

Sensata-Crydom
