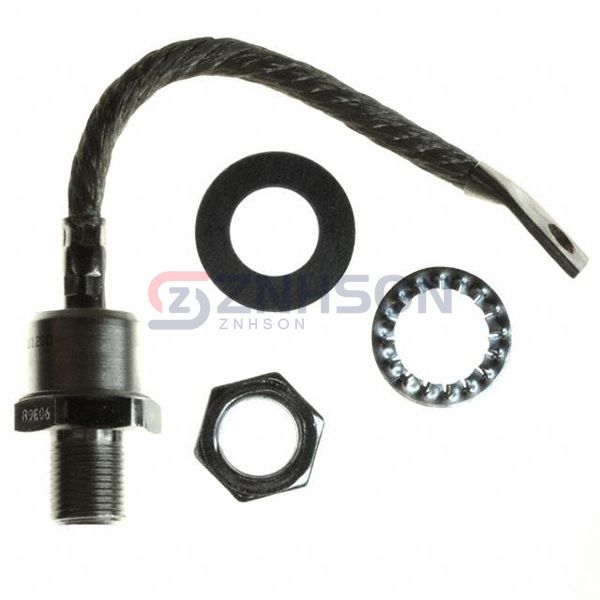

VS-309UR120
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE GEN PURP 120V 330A DO205AB
$0.00
Available to order
Reference Price (USD)
12+
$60.80000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the VS-309UR120 single rectifier diode by Vishay General Semiconductor - Diodes Division, a key component in the Diodes - Rectifiers - Single classification. This diode excels in providing stable and efficient rectification for circuits requiring precise voltage control. With its high surge current capability and low leakage, it is perfect for use in power management systems, LED drivers, and battery chargers. The VS-309UR120 is widely utilized in telecommunications, renewable energy systems, and medical devices, ensuring reliable operation under varying load conditions. Choose Vishay General Semiconductor - Diodes Division's VS-309UR120 for unmatched quality and performance in discrete semiconductor solutions.
Specifications
- Product Status: Active
- Diode Type: Standard, Reverse Polarity
- Voltage - DC Reverse (Vr) (Max): 120 V
- Current - Average Rectified (Io): 330A
- Voltage - Forward (Vf) (Max) @ If: 1.22 V @ 942 A
- Speed: Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 15 mA @ 120 V
- Capacitance @ Vr, F: -
- Mounting Type: Stud Mount
- Package / Case: DO-205AB, DO-9, Stud
- Supplier Device Package: DO-205AB (DO-9)
- Operating Temperature - Junction: -40°C ~ 180°C
Related Products
Vishay General Semiconductor - Diodes Division
GPP15K-E3/73
Taiwan Semiconductor Corporation
1N5401GHA0G
Taiwan Semiconductor Corporation
SS29 R5G
Vishay General Semiconductor - Diodes Division
SE10PJ-E3/85A
onsemi
MBR1080
Taiwan Semiconductor Corporation
S4A V6G
Panasonic Electronic Components

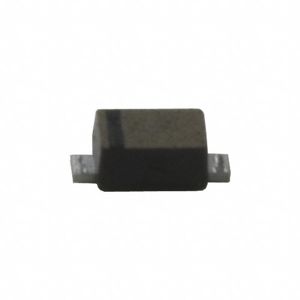

MA27D2900L
Taiwan Semiconductor Corporation

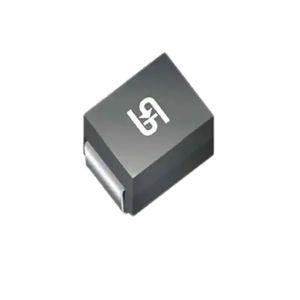

S5K M6G
