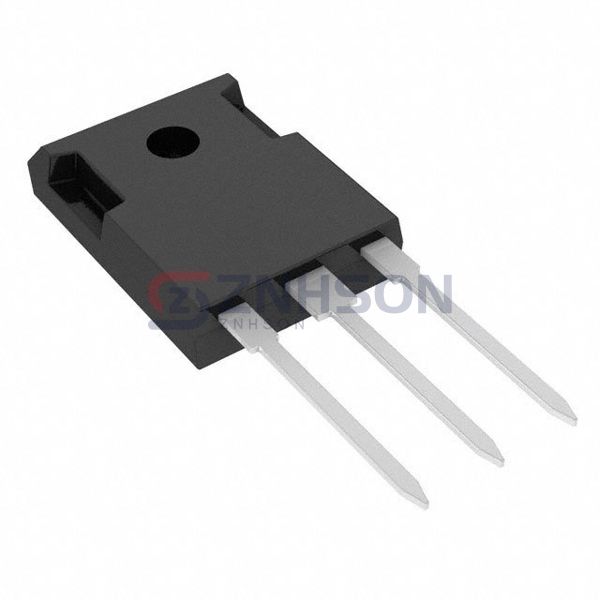

VS-40TPS12ALHM3
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
SCR 1.2KV 55A TO247AD
$5.48
Available to order
Reference Price (USD)
1+
$5.62000
10+
$5.09000
25+
$4.83600
100+
$4.25100
250+
$4.05604
500+
$3.68550
1,000+
$3.17850
2,500+
$3.04200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the VS-40TPS12ALHM3 SCR by Vishay General Semiconductor - Diodes Division, a high-reliability component in the Thyristors family of Discrete Semiconductor Products. Its notable features include precise gate control and excellent thermal cycling performance. Widely adopted in traction systems, welding inverters, and power distribution networks, this thyristor demonstrates exceptional versatility. Vishay General Semiconductor - Diodes Division's VS-40TPS12ALHM3 is the smart choice for engineers seeking robust power control solutions.
Specifications
- Product Status: Active
- Voltage - Off State: 1.2 kV
- Voltage - Gate Trigger (Vgt) (Max): 1.7 V
- Current - Gate Trigger (Igt) (Max): 150 mA
- Voltage - On State (Vtm) (Max): 1.85 V
- Current - On State (It (AV)) (Max): 35 A
- Current - On State (It (RMS)) (Max): 55 A
- Current - Hold (Ih) (Max): 300 mA
- Current - Off State (Max): 500 µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 600A @ 50Hz
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AD
