VS-80CPH03-N3
Vishay General Semiconductor - Diodes Division
Vishay General Semiconductor - Diodes Division
DIODE STANDARD 300V 20A TO247AC
$8.72
Available to order
Reference Price (USD)
1+
$8.69000
25+
$7.59200
100+
$6.69270
500+
$5.92688
1,000+
$5.42741
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the high-performance VS-80CPH03-N3 from Vishay General Semiconductor - Diodes Division, a premium diode rectifier array designed for efficient power conversion in demanding applications. As part of the Discrete Semiconductor Products category, this diode array ensures reliable rectification with low forward voltage drop and high surge current capability. Ideal for power supplies, motor controls, and inverters, the VS-80CPH03-N3 delivers exceptional durability and thermal performance. Whether you're designing industrial equipment or automotive electronics, trust Vishay General Semiconductor - Diodes Division's cutting-edge technology for superior efficiency and longevity.
Specifications
- Product Status: Active
- Diode Configuration: 1 Pair Common Cathode
- Diode Type: Standard
- Voltage - DC Reverse (Vr) (Max): 300 V
- Current - Average Rectified (Io) (per Diode): 20A
- Voltage - Forward (Vf) (Max) @ If: 1.25 V @ 40 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): 35 ns
- Current - Reverse Leakage @ Vr: 10 µA @ 300 V
- Operating Temperature - Junction: -65°C ~ 175°C
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247AC
Related Products
Comchip Technology
CDSH3-222N-G
Infineon Technologies
BAT64-06B5003
Taiwan Semiconductor Corporation
TSI20H100CW
Panjit International Inc.
MBR640FCT_T0_00001
Yangzhou Yangjie Electronic Technology Co.,Ltd
BAS40-04-F2-0000HF
IXYS

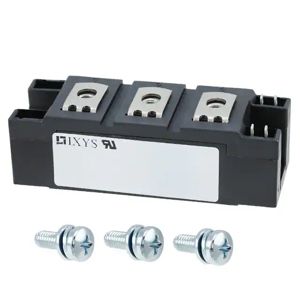

MDD172-14N1
Diodes Incorporated
SBR4045CT
Diodes Incorporated

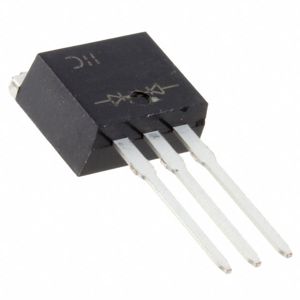

SBR10150CTE
Global Power Technology-GPT

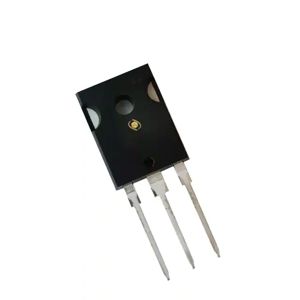

G5S12030BM
