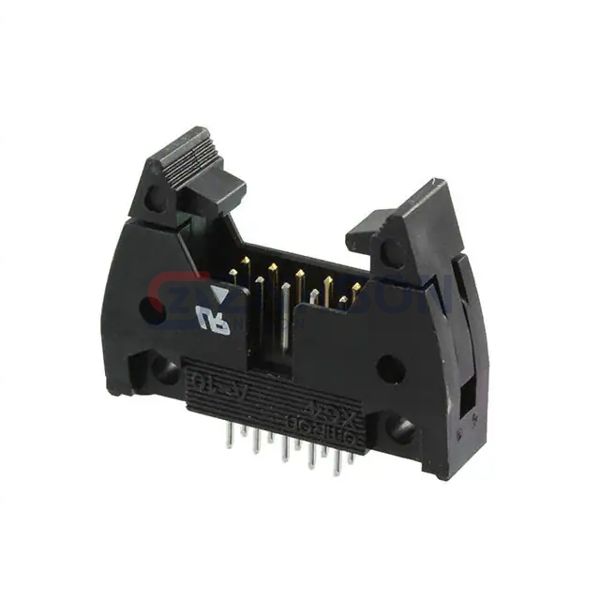

XG4A-1032
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONN HEADER VERT 10POS 2.54MM
$1.67
Available to order
Reference Price (USD)
1+
$1.46000
10+
$1.32900
100+
$1.15210
500+
$0.97508
1,000+
$0.84862
5,000+
$0.82052
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The XG4A-1032 from Omron Electronics Inc-EMC Div is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the XG4A-1032 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Omron Electronics Inc-EMC Div for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Short
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.657" (16.70mm)
- Insulation Height: 0.669" (17.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Tin
- Contact Material: Brass, Nickel
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
Related Products
Amphenol ICC (FCI)
75160-127-36LF
Preci-Dip
800-80-045-66-001101
Samtec Inc.
TSW-103-24-T-S
Preci-Dip
852-10-020-30-051101
Preci-Dip
350-80-157-00-013101
Oupiin
2111-2X30G00SB
Samtec Inc.
FTS-109-03-L-DV
3M

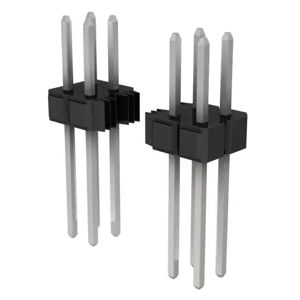

929836-03-20
Harwin Inc.

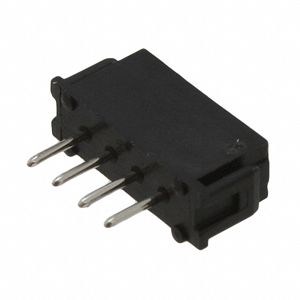

M80-8520442
