XG4A-5074
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div

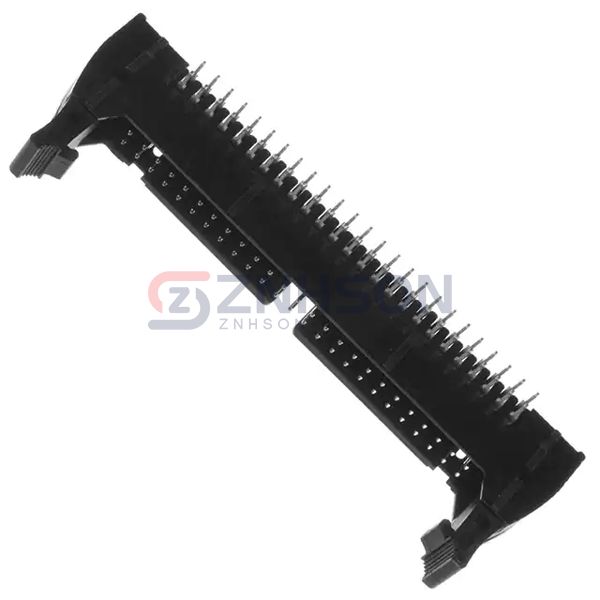

CONN HEADER R/A 50POS 2.54MM
$3.08
Available to order
Reference Price (USD)
1+
$4.18000
10+
$4.01700
100+
$3.34760
500+
$2.84550
1,000+
$2.42704
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the XG4A-5074 rectangular connector header from Omron Electronics Inc-EMC Div for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Omron Electronics Inc-EMC Div is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: -
- Insulation Height: 0.335" (8.51mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Tin
- Contact Material: Brass, Nickel
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 300V
