XG8T-1431
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
CONN HEADER VERT 14POS 2.54MM
$1.16
Available to order
Reference Price (USD)
1+
$0.92000
10+
$0.80700
100+
$0.69660
500+
$0.56992
1,000+
$0.50659
5,000+
$0.45734
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

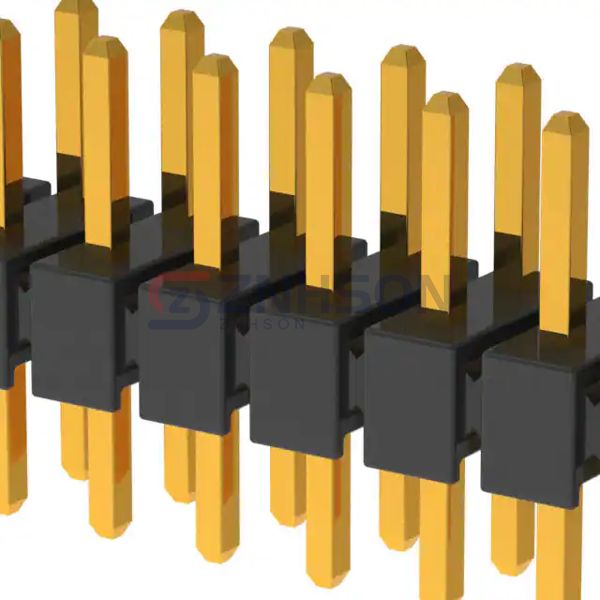

The XG8T-1431 male pin header by Omron Electronics Inc-EMC Div provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Omron Electronics Inc-EMC Div guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.169" (4.30mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.386" (9.80mm)
- Insulation Height: 0.098" (2.50mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 5.90µin (0.150µm)
- Contact Finish - Post: Gold
- Contact Material: Brass, Nickel
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 300V
