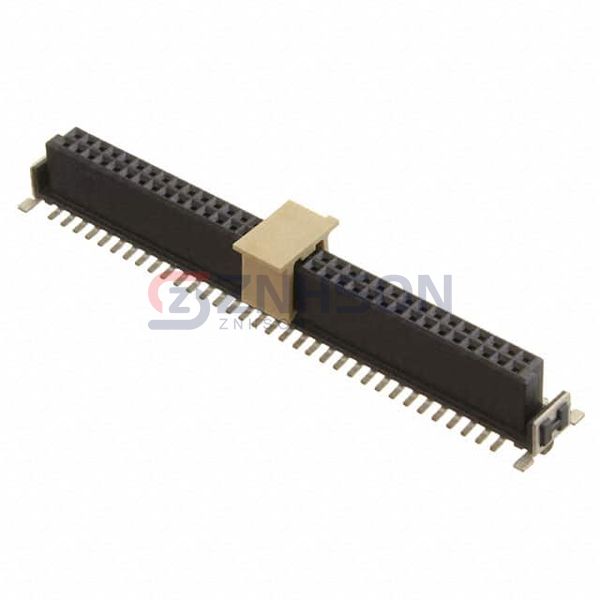

XH5B-6815-4N

Specifications

• Product Status: Active
• Connector Type: Socket
• Contact Type: Female Socket
• Style: Board to Board or Cable
• Number of Positions: 68
• Number of Positions Loaded: All
• Pitch - Mating: 0.050" (1.27mm)
• Number of Rows: 2
• Row Spacing - Mating: 0.050" (1.27mm)
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: -
• Insulation Color: Black
• Insulation Height: 0.246" (6.25mm)
• Contact Length - Post: -
• Operating Temperature: -55°C ~ 105°C
• Material Flammability Rating: UL94 V-0
• Contact Finish - Post: Tin
• Mated Stacking Heights: 8mm, 9.5mm
• Ingress Protection: -
• Features: Board Guide, Pick and Place, Solder Retention
• Current Rating (Amps): 1A
• Voltage Rating: 100VAC
