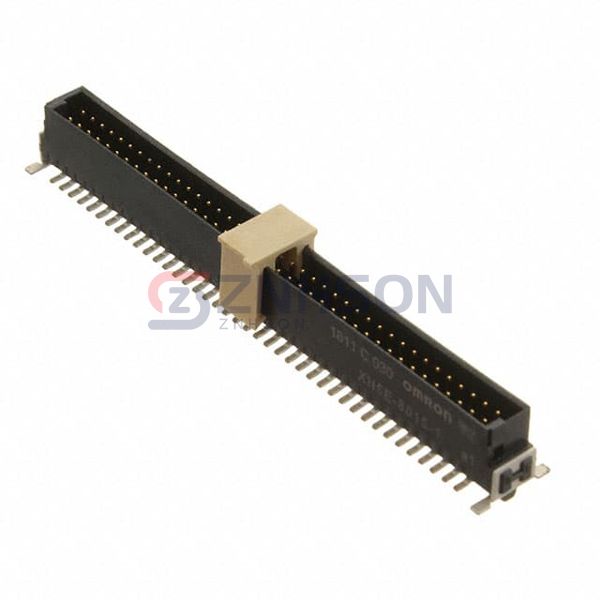

XH5E-8015-1N
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
PLUG, STRAIGHT, SMT PINS
$9.29
Available to order
Reference Price (USD)
1+
$9.29000
500+
$9.1971
1000+
$9.1042
1500+
$9.0113
2000+
$8.9184
2500+
$8.8255
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your interconnections with the XH5E-8015-1N rectangular connector header from Omron Electronics Inc-EMC Div. These male pin headers feature a rugged design for high-stress environments. Offering excellent electrical and mechanical properties, the XH5E-8015-1N is perfect for automotive, industrial, and consumer electronics. Omron Electronics Inc-EMC Div ensures each connector is tested for performance and durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 80
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.260" (6.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: 100VAC
Related Products
Harwin Inc.
G125-MS11205M1P
Samtec Inc.
TFM-105-12-SM-D-A-P-TR
Molex
0877581850
Molex
0022288273
TE Connectivity AMP Connectors
2-644803-4
Samtec Inc.

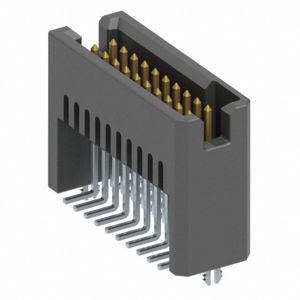

TFM-110-32-L-D-LC
Amphenol ICC (FCI)

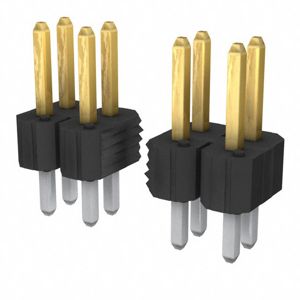

79425-110HLF
Samtec Inc.

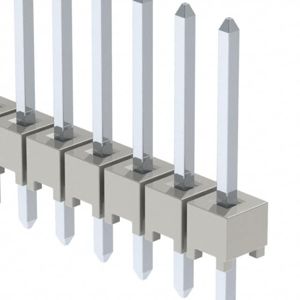

HTSW-134-14-T-S
