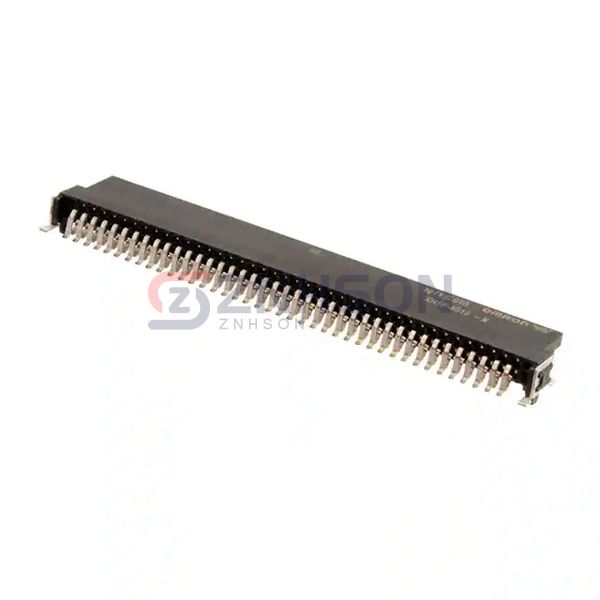

XH5F-8015-N
Omron Electronics Inc-EMC Div
Omron Electronics Inc-EMC Div
SOCKET, RIGHT-ANGLE, SMT PINS
$9.91
Available to order
Reference Price (USD)
1+
$9.91000
500+
$9.8109
1000+
$9.7118
1500+
$9.6127
2000+
$9.5136
2500+
$9.4145
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The XH5F-8015-N Omron Electronics Inc-EMC Div Rectangular Connectors - Headers, Receptacles, and Female Sockets provide reliable solutions for high-speed data and power transmission. With advanced shielding and low insertion force, these connectors are ideal for data storage, networking hardware, and gaming consoles. Their high-reliability design ensures performance in servers, routers, and VR systems. Omron Electronics Inc-EMC Div connectors are the preferred choice for engineers seeking quality and durability in high-tech applications.
Specifications
- Product Status: Active
- Connector Type: Socket
- Contact Type: Female Socket
- Style: Board to Board or Cable
- Number of Positions: 80
- Number of Positions Loaded: All
- Pitch - Mating: 0.050" (1.27mm)
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Insulation Color: Black
- Insulation Height: 0.146" (3.70mm)
- Contact Length - Post: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-0
- Contact Finish - Post: Tin
- Mated Stacking Heights: -
- Ingress Protection: -
- Features: Board Guide, Solder Retention
- Current Rating (Amps): 1A
- Voltage Rating: 100VAC
Related Products
Mill-Max Manufacturing Corp.
311-93-155-61-001000
ITT Cannon, LLC
TST06RB02T
Samtec Inc.
SLW-106-01-T-S
Samtec Inc.
ESD-112-T-03
Mill-Max Manufacturing Corp.
311-93-113-41-001000
Preci-Dip
803-87-046-65-410101
Samtec Inc.
MLE-146-01-G-DV
Mill-Max Manufacturing Corp.
801-43-032-10-012000
Sullins Connector Solutions

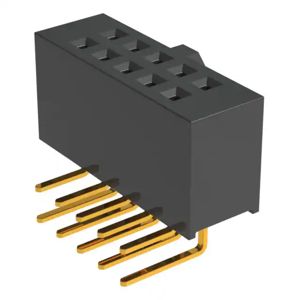

SFH11-NPPC-D05-RA-BK
