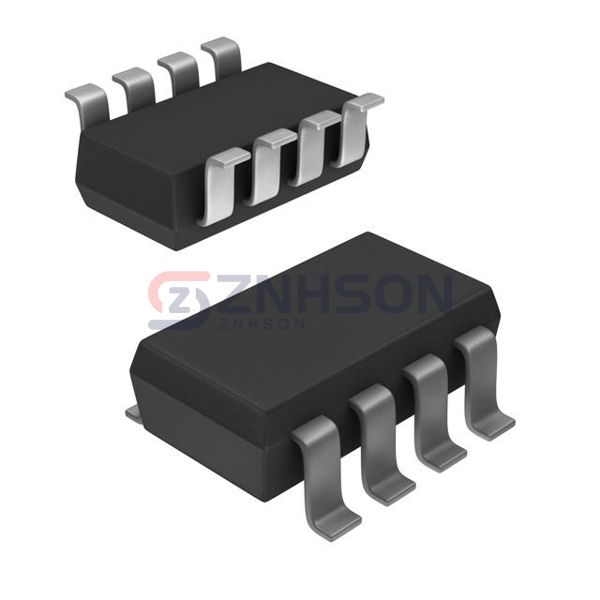

ZDT6718TC
Diodes Incorporated
Diodes Incorporated
TRANS NPN/PNP 20V 2A/1.5A SM8
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ZDT6718TC BJT Array by Diodes Incorporated, a versatile solution for modern electronic designs. This transistor array excels in high-speed switching and linear amplification, featuring matched pairs for consistent performance. Commonly used in audio amplifiers, LED drivers, and power management systems, the ZDT6718TC is a staple in telecommunications and renewable energy applications. With robust construction and ESD protection, it meets stringent industry standards while simplifying PCB layout for compact devices.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN, PNP
- Current - Collector (Ic) (Max): 2A, 1.5A
- Voltage - Collector Emitter Breakdown (Max): 20V
- Vce Saturation (Max) @ Ib, Ic: 200mV @ 50mA, 2.5A, 220mV @ 50mA, 1.5A
- Current - Collector Cutoff (Max): 100nA
- DC Current Gain (hFE) (Min) @ Ic, Vce: 300 @ 200mA, 2V / 300 @ 100mA, 2V
- Power - Max: 2.5W
- Frequency - Transition: 140MHz, 180MHz
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: SOT-223-8
- Supplier Device Package: SM8
