ZF1-25-01-T-WT
Samtec Inc.
Samtec Inc.

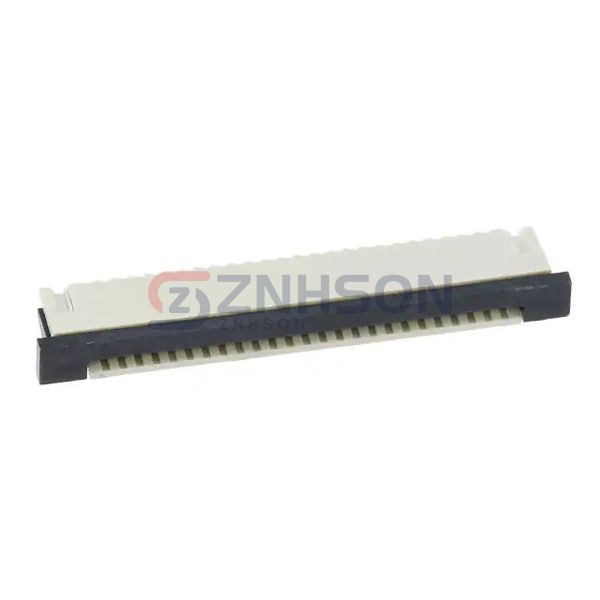

CONN FFC BOTTOM 25POS 1.00MM R/A
$2.49
Available to order
Reference Price (USD)
1+
$1.17000
16+
$1.03000
32+
$0.96969
64+
$0.92922
112+
$0.88884
256+
$0.80801
512+
$0.72721
1,008+
$0.64640
2,512+
$0.58580
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Introducing the ZF1-25-01-T-WT FFC/FPC Connectors from Samtec Inc., where cutting-edge design meets uncompromising quality. These connectors are optimized for ultra-thin devices, offering a 0.3mm pitch option and a stack height as low as 1.0mm. The ZF1-25-01-T-WT series shines in battery management systems, LED displays, and portable diagnostic tools, thanks to its vibration resistance and IP-rated variants. Samtec Inc.'s eco-friendly manufacturing process adheres to RoHS directives, aligning with sustainable practices. Opt for ZF1-25-01-T-WT when your project demands space efficiency without sacrificing performance.
Specifications
- Product Status: Active
- Flat Flex Type: FFC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 25
- Pitch: 0.039" (1.00mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.118" (3.00mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Polyphenylene Sulfide (PPS)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: UL94 V-2
