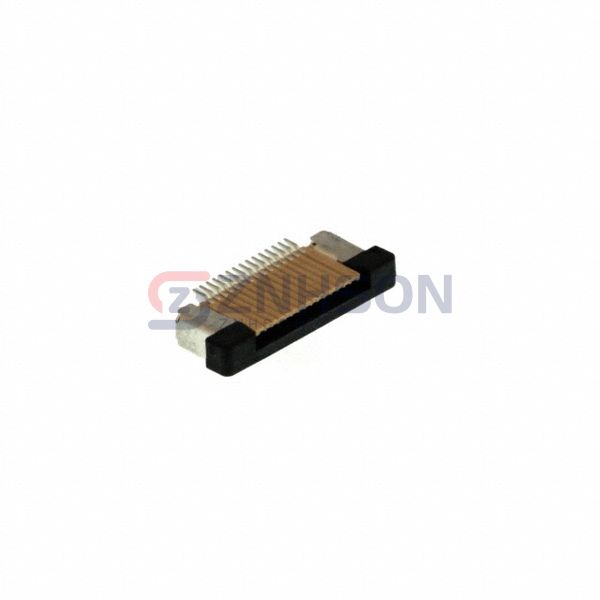

ZF5S-15-01-T-WT-TR
Samtec Inc.
Samtec Inc.
CONN FFC BOTTOM 15POS 0.50MM R/A
$2.26
Available to order
Reference Price (USD)
1,700+
$1.02805
3,400+
$0.99260
5,100+
$0.94297
8,500+
$0.92170
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZF5S-15-01-T-WT-TR FFC/FPC Connectors by Samtec Inc. redefine compact and reliable interconnects for advanced electronics. Engineered with a focus on miniaturization and high-speed data transfer, these connectors are essential for modern PCB designs. Key benefits include reduced crosstalk, enhanced mechanical stability, and broad temperature tolerance (-40 C to +105 C). From smart home systems to aerospace instrumentation, the ZF5S-15-01-T-WT-TR delivers consistent performance. Samtec Inc.'s innovative design prioritizes user-friendly features like tool-less locking mechanisms. Select ZF5S-15-01-T-WT-TR for a connector that bridges innovation and practicality in your applications.
Specifications
- Product Status: Active
- Flat Flex Type: FFC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 15
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.083" (2.10mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: -
Related Products
Samtec Inc.
ZF1-10-01-T-WT
Molex
5027903091
Cvilux USA
CF25321D0R0-05-NH
Molex
5014610491
Adam Tech
PCB-C5-06-SA-SMT
TE Connectivity AMP Connectors

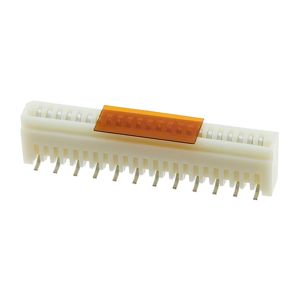

2-1735042-3
Adam Tech

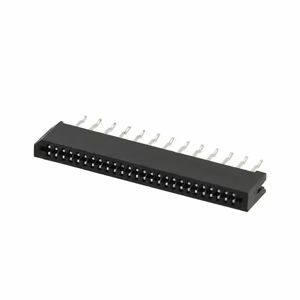

PCB-C-26-T-20
KYOCERA AVX

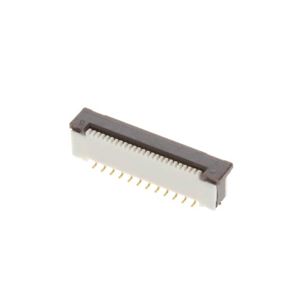

046214024010846+
Molex

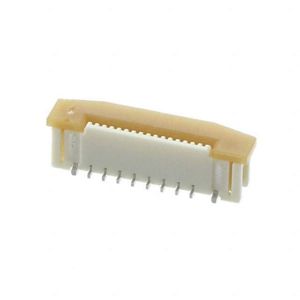

0525591652
