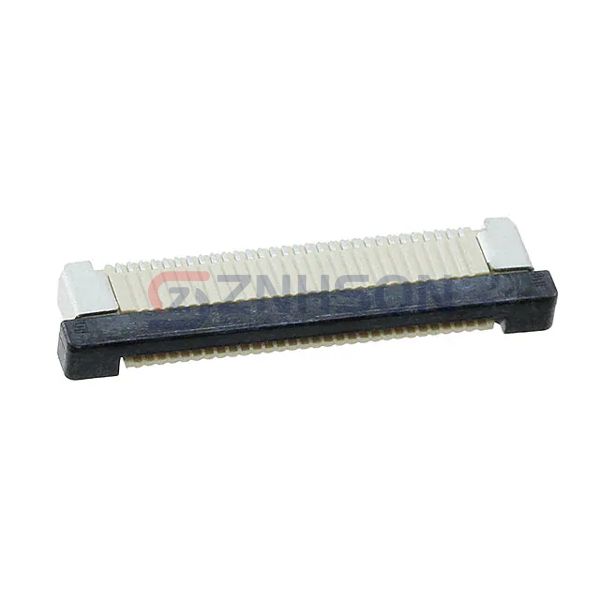

ZF5S-30-01-T-WT
Samtec Inc.
Samtec Inc.
CONN FFC BOTTOM 30POS 0.50MM R/A
$3.49
Available to order
Reference Price (USD)
1+
$2.15000
10+
$1.95500
27+
$1.83556
54+
$1.75556
108+
$1.67583
270+
$1.51619
513+
$1.39649
1,026+
$1.19700
2,511+
$1.11720
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Revolutionize your interconnections with Samtec Inc.'s ZF5S-30-01-T-WT FFC/FPC Connectors, built for the challenges of tomorrow's electronics. These connectors excel in high-flex applications with a minimum 10,000-cycle durability rating and anti-mismating keying options. The ZF5S-30-01-T-WT is a favorite in satellite modules, electric vehicle charging stations, and industrial HMI panels due to its rugged construction. Samtec Inc. incorporates advanced materials like LCP insulators for thermal stability. With customizable cable lengths and polarization options, ZF5S-30-01-T-WT adapts to your exact specifications a true partner in innovation.
Specifications
- Product Status: Active
- Flat Flex Type: FFC
- Mounting Type: Surface Mount, Right Angle
- Connector/Contact Type: Contacts, Bottom
- Number of Positions: 30
- Pitch: 0.020" (0.50mm)
- Termination: Solder
- FFC, FCB Thickness: 0.30mm
- Height Above Board: 0.083" (2.10mm)
- Locking Feature: Slide Lock
- Cable End Type: Straight
- Contact Material: Phosphor Bronze
- Contact Finish: Tin
- Housing Material: Liquid Crystal Polymer (LCP)
- Actuator Material: Liquid Crystal Polymer (LCP)
- Features: Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating: -
- Operating Temperature: -55°C ~ 105°C
- Material Flammability Rating: -
