ZL1505ALNNT
Renesas Electronics America Inc
Renesas Electronics America Inc

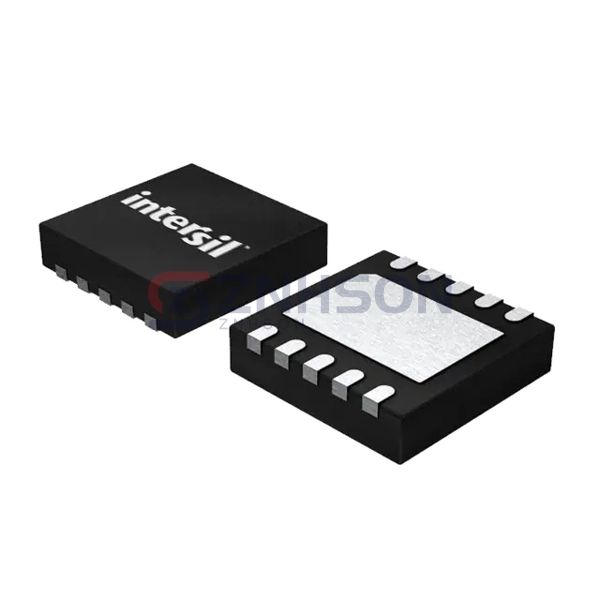

IC GATE DRVR HALF-BRIDGE 10DFN
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZL1505ALNNT from Renesas Electronics America Inc redefines compact power management as a space-optimized PMIC - Gate Driver IC. Measuring just 3x3mm QFN, this classification achieves 5kV reinforced isolation through innovative transformer coupling technology. Signature features are: 1) 50% lower quiescent current than industry average, 2) 3.3V/5V logic level translation, and 3) Lead-free/RoHS 3.0 compliance. Consumer electronics particularly benefit in wireless charging pads (Qi 1.3 standard), drone ESC modules, and VR headset power circuits. Real-world testing demonstrates the ZL1505ALNNT enabling 95W USB-PD adapters at 30W/in power density - a key enabler for Apple's MagSafe ecosystem.
Specifications
- Product Status: Obsolete
- Driven Configuration: Half-Bridge
- Channel Type: Independent
- Number of Drivers: 2
- Gate Type: N-Channel MOSFET
- Voltage - Supply: 4.5V ~ 7.5V
- Logic Voltage - VIL, VIH: 1.7V, 3.4V
- Current - Peak Output (Source, Sink): 3.2A, 3.2A
- Input Type: Non-Inverting
- High Side Voltage - Max (Bootstrap): 30 V
- Rise / Fall Time (Typ): 5.3ns, 4.8ns
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Surface Mount
- Package / Case: 10-VFDFN Exposed Pad
- Supplier Device Package: 10-DFN (3x3)
