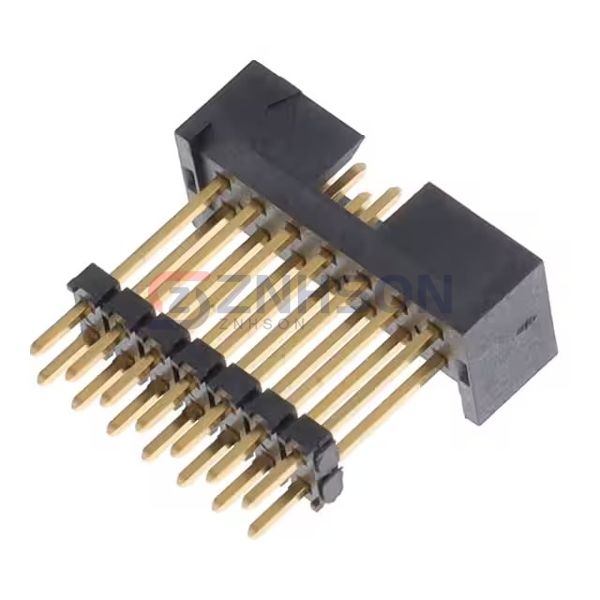

ZLTMM-107-69-G-D-502
Samtec Inc.
Samtec Inc.
2.00 MM SHROUDED VARIABLE STACK
$8.77
Available to order
Reference Price (USD)
1+
$8.77000
500+
$8.6823
1000+
$8.5946
1500+
$8.5069
2000+
$8.4192
2500+
$8.3315
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the ZLTMM-107-69-G-D-502 rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the ZLTMM-107-69-G-D-502 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.120" (3.05mm)
- Contact Length - Post: 0.137" (3.48mm)
- Overall Contact Length: 0.614" (15.60mm)
- Insulation Height: 0.502" (12.75mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyamide (PA), Nylon
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
