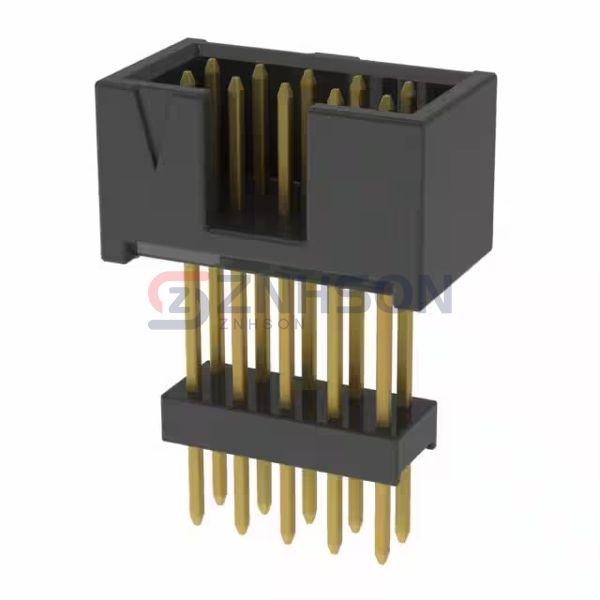

ZSS-105-04-G-D-790
Samtec Inc.
Samtec Inc.
CONN HDR .100" 10POS
$4.75
Available to order
Reference Price (USD)
1+
$4.75000
500+
$4.7025
1000+
$4.655
1500+
$4.6075
2000+
$4.56
2500+
$4.5125
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the ZSS-105-04-G-D-790 rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.140" (3.56mm)
- Overall Contact Length: 0.930" (23.62mm)
- Insulation Height: 0.790" (20.07mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
TSM-108-03-S-DV-LC-TR
Molex
0702462602
Amphenol ICC (FCI)
77311-101-32LF
Mill-Max Manufacturing Corp.
335-40-131-00-160000
Hirose Electric Co Ltd
DF1B-16DP-2.5DSA(01)
Samtec Inc.
FTS-124-02-F-DV-TR
Molex
0026603150
TE Connectivity AMP Connectors
1586040-2
Samtec Inc.

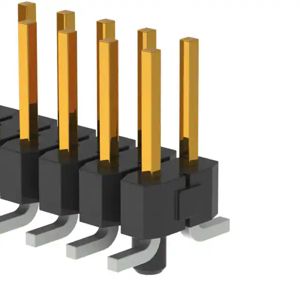

TSM-130-01-L-DV-A-P
