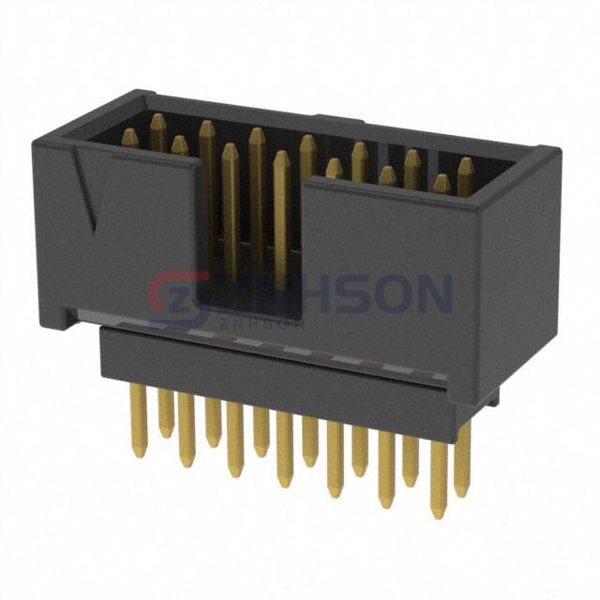

ZSS-107-01-G-D-465

Samtec Inc.

Manufacturer

Samtec Inc.

Description:

CONN HDR .100" 14POS

Datasheet:

ZSS-107-01-G-D-465 Datasheet

$4.23

Available to order

Reference Price (USD)

$4.23000

500+

$4.1877

1000+

$4.1454

1500+

$4.1031

2000+

$4.0608

2500+

$4.0185

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Discover the ZSS-107-01-G-D-465 rectangular connector header from Samtec Inc., a top choice for male pin interconnections. These headers provide exceptional mechanical strength and electrical performance. With options for through-hole or surface mount, the ZSS-107-01-G-D-465 adapts to different assembly processes. Ideal for use in automotive electronics, consumer gadgets, and IoT devices. Samtec Inc. guarantees connectors that enhance your product's reliability and efficiency.

Specifications

Product Status: Active
Connector Type: Header, Elevated
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 14
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board or Cable
Shrouding: Shrouded - 4 Wall
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.250" (6.35mm)
Contact Length - Post: 0.165" (4.19mm)
Overall Contact Length: 0.630" (16.00mm)
Insulation Height: 0.465" (11.81mm)
Contact Shape: Square
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Gold
Contact Material: Phosphor Bronze
Insulation Material: Polyester, Glass Filled
Features: Keying Slot
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -

Shopping cart

ZSS-107-01-G-D-465

Reference Price (USD)

Specifications

Related Products

FTS-117-01-F-DV-A

AT15-12PC-BM04

178305-2

0010977646

FTSH-104-01-L-MT-TR

9-103330-0-25

IPL1-110-01-L-D-P

5499206-9

PEC04DADN

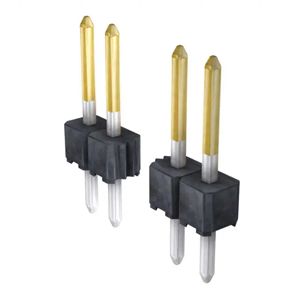

0901200786
