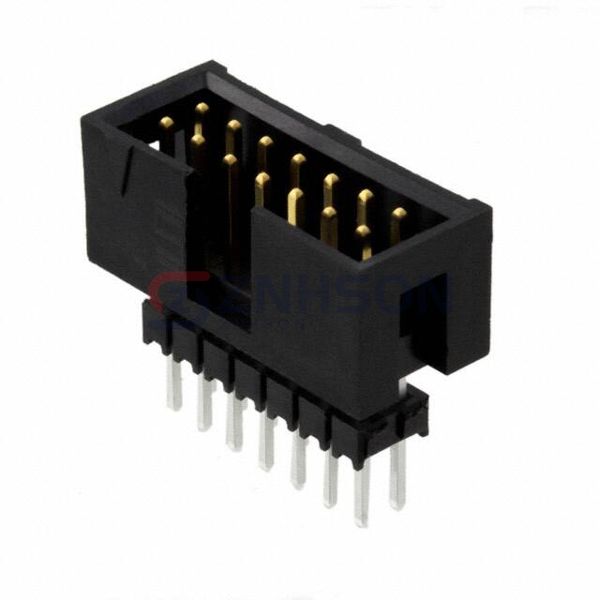

ZSS-107-02-S-D-555
Samtec Inc.
Samtec Inc.
CONN HEADER VERT 14POS 2.54MM
$6.27
Available to order
Reference Price (USD)
1+
$6.27000
500+
$6.2073
1000+
$6.1446
1500+
$6.0819
2000+
$6.0192
2500+
$5.9565
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose the ZSS-107-02-S-D-555 rectangular connector header from Samtec Inc. for superior male pin interconnections. These headers are engineered for high-density applications, offering excellent conductivity and mechanical stability. Common uses include server racks, test equipment, and marine electronics. Samtec Inc. is committed to providing connectors that exceed industry expectations.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 14
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.175" (4.45mm)
- Overall Contact Length: 0.730" (18.54mm)
- Insulation Height: 0.555" (14.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
