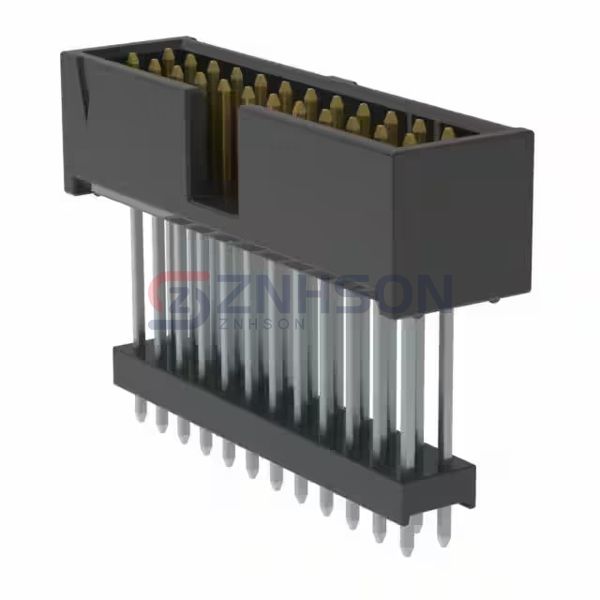

ZSS-112-04-L-D-812
Samtec Inc.
Samtec Inc.
CONN HDR .100" 24POS
$4.96
Available to order
Reference Price (USD)
1+
$4.96000
500+
$4.9104
1000+
$4.8608
1500+
$4.8112
2000+
$4.7616
2500+
$4.712
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-112-04-L-D-812 from Samtec Inc. is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the ZSS-112-04-L-D-812 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Samtec Inc. for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 24
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.930" (23.62mm)
- Insulation Height: 0.812" (20.62mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
804-V3-057-10-193101
Molex
1722862308
Samtec Inc.
TMM-111-01-L-D-SM-P-TR
Samtec Inc.
ZSS-113-09-G-D-460
TE Connectivity AMP Connectors
2355177-5
Cvilux USA
CA3510H1100-NH
Amphenol ICC (FCI)
68488-236
Samtec Inc.

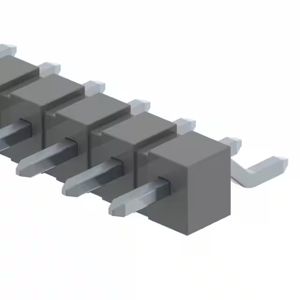

TSM-117-04-T-SH-P-TR
