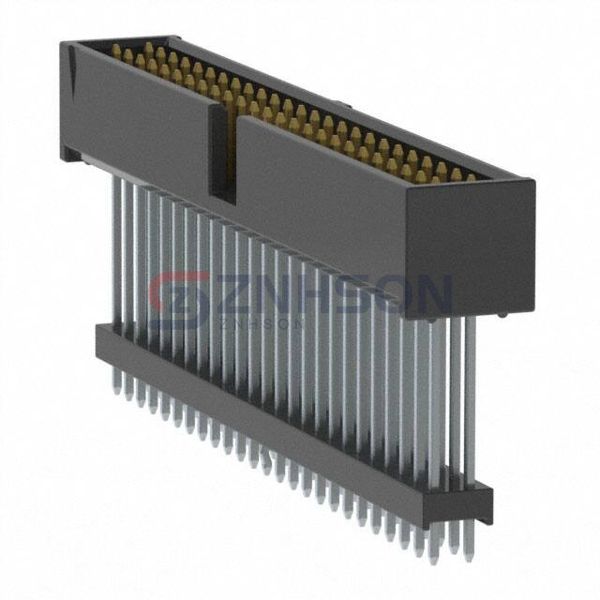

ZSS-125-05-S-D-915-LL
Samtec Inc.
Samtec Inc.
CONN HDR .100" 50POS
$15.48
Available to order
Reference Price (USD)
1+
$15.48000
500+
$15.3252
1000+
$15.1704
1500+
$15.0156
2000+
$14.8608
2500+
$14.706
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-125-05-S-D-915-LL male pin header by Samtec Inc. provides a reliable solution for rectangular connectors. Designed for ease of use and high performance, these headers are suitable for a wide range of applications, including LED lighting, HVAC systems, and portable devices. Samtec Inc. guarantees connectors that enhance your product's functionality and lifespan.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 50
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.115" (2.92mm)
- Overall Contact Length: 1.030" (26.16mm)
- Insulation Height: 0.915" (23.24mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Sullins Connector Solutions
PBC14SAAN
Preci-Dip
499-80-238-10-009101
Preci-Dip
351-10-143-00-016101
Sullins Connector Solutions
PREC021SABN-RC
Samtec Inc.
HTSW-115-08-L-D-LA
TE Connectivity AMP Connectors
9-146258-0-19
Amphenol ICC (FCI)
75168-117-36LF
Preci-Dip

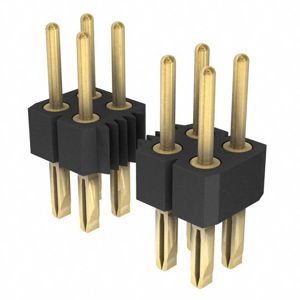

802-10-046-66-001101
