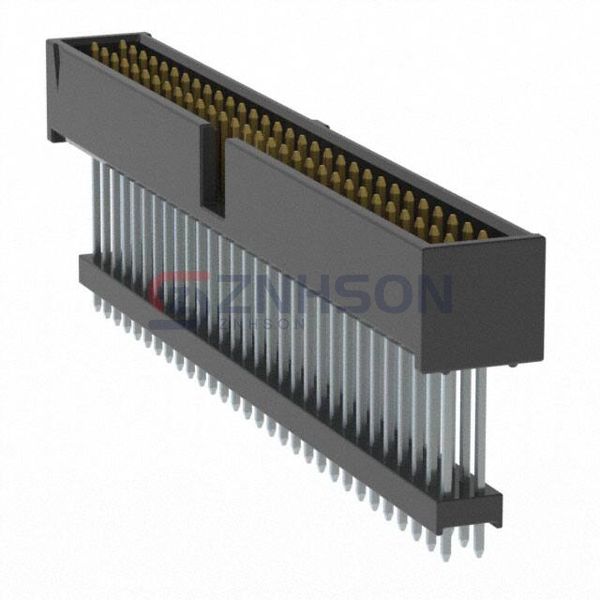

ZSS-130-04-L-D-800
Samtec Inc.
Samtec Inc.
CONN HDR .100" 60POS
$11.40
Available to order
Reference Price (USD)
1+
$11.40000
500+
$11.286
1000+
$11.172
1500+
$11.058
2000+
$10.944
2500+
$10.83
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The ZSS-130-04-L-D-800 by Samtec Inc. is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the ZSS-130-04-L-D-800 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Samtec Inc. ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Elevated
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 60
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.250" (6.35mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.930" (23.62mm)
- Insulation Height: 0.800" (20.32mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Polyester, Glass Filled
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
HARTING
09185147902
3M
929835-01-03
Samtec Inc.
HTSW-131-07-S-S
TE Connectivity AMP Connectors
103908-5
Preci-Dip
852-80-026-20-001101
Samtec Inc.
TSW-119-06-G-D
Molex
43045-0402
Samtec Inc.

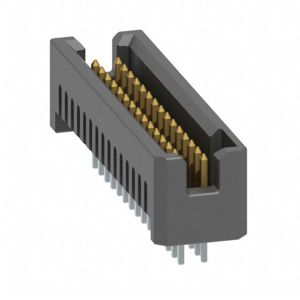

TFM-115-01-S-D-K
