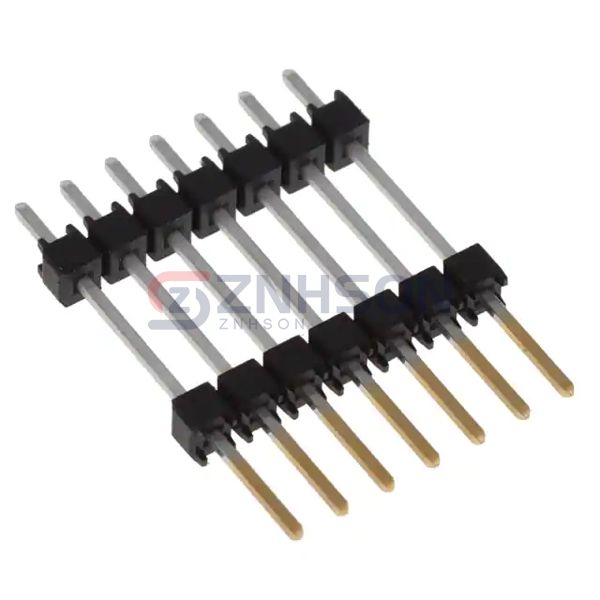

ZW-07-11-L-S-550-120
Samtec Inc.
Samtec Inc.
CONN HDR 7POS 0.1 STACK T/H GOLD
$1.45
Available to order
Reference Price (USD)
1+
$0.91000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your PCB layouts with the ZW-07-11-L-S-550-120 by Samtec Inc., a high-quality rectangular connector for board spacers and stackers. Designed for versatility, these connectors support various pitch options and mounting styles. The ZW-07-11-L-S-550-120 is ideal for use in LED lighting, power supplies, and wearable technology. Specific applications include LED displays, AC/DC converters, and fitness trackers where compact and reliable connections are vital.
Specifications
- Product Status: Active
- Number of Positions: 7
- Pitch: 0.100" (2.54mm)
- Number of Rows: 1
- Row Spacing: -
- Length - Overall Pin: 0.930" (23.622mm)
- Length - Post (Mating): 0.260" (6.604mm)
- Length - Stack Height: 0.550" (13.970mm)
- Length - Tail: 0.120" (3.048mm)
- Mounting Type: Through Hole
- Termination: Solder
- Contact Finish - Post (Mating): Gold
- Contact Finish Thickness - Post (Mating): 10.0µin (0.25µm)
- Color: Black
