0022284232
Molex
Molex

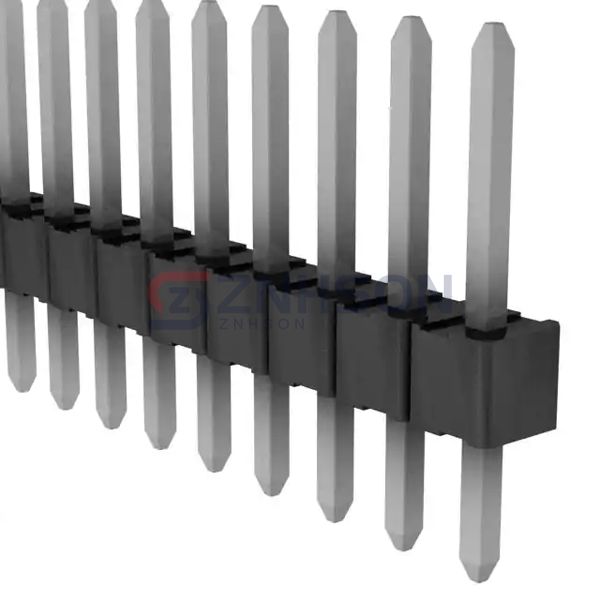

CONN HEADER VERT 23POS 2.54MM
$0.94
Available to order
Reference Price (USD)
1+
$0.90000
10+
$0.78900
25+
$0.74240
50+
$0.71140
100+
$0.68040
250+
$0.61856
500+
$0.55668
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic designs with the 0022284232 rectangular connector header by Molex. These male pin connectors provide a secure and efficient solution for PCB interconnections. Featuring a compact design and high conductivity, the 0022284232 ensures optimal signal transmission. Suitable for harsh environments, these headers are resistant to vibration and corrosion. Common uses include industrial automation, medical devices, and aerospace systems. Trust Molex for connectors that deliver performance and reliability in every application.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 23
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.295" (7.49mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.505" (12.83mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
TSW-104-10-L-S-RE
Harwin Inc.
M20-8890245

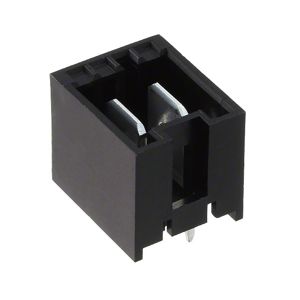

TE Connectivity AMP Connectors
2-521755-2

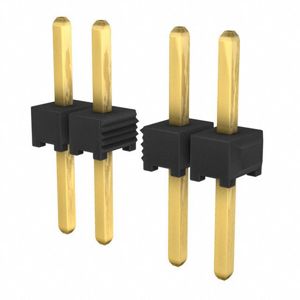

Samtec Inc.
TMM-140-04-G-S

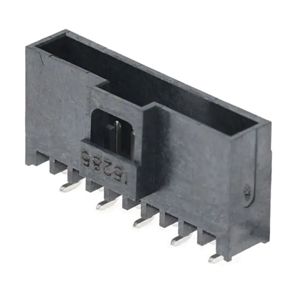

Molex
1510621060

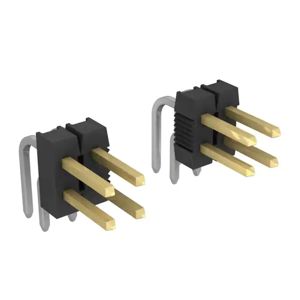

TE Connectivity AMP Connectors
9-103326-0-19

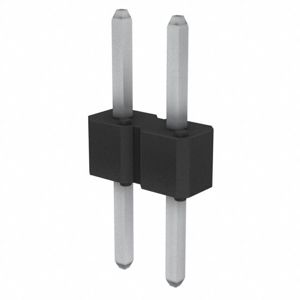

Amphenol ICC (FCI)
77311-4AT-02LF

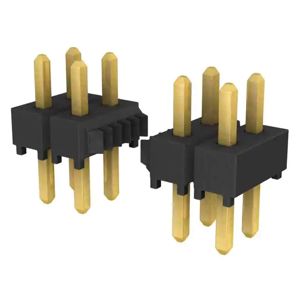

Samtec Inc.
TSW-147-05-G-D

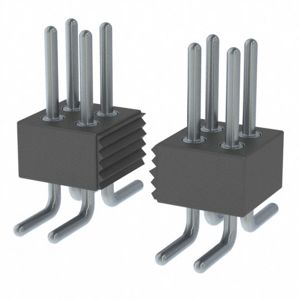

Mill-Max Manufacturing Corp.
