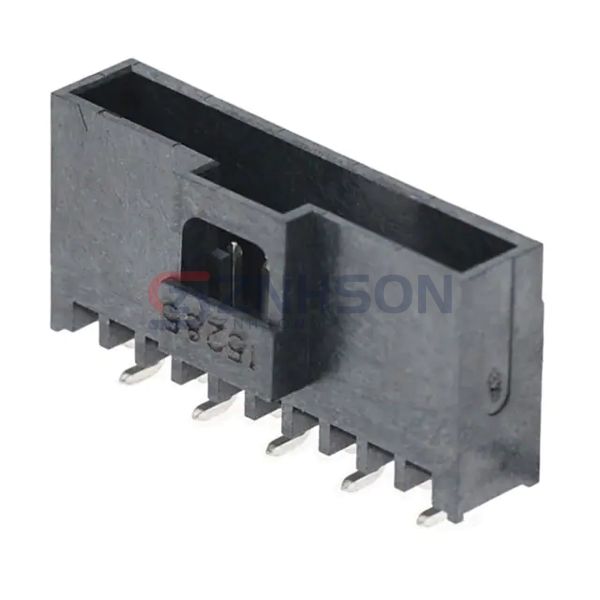

1510621060
Molex
Molex
CONN HEADER SMD 10POS 2MM
$2.14
Available to order
Reference Price (USD)
1+
$1.68000
22+
$1.52455
110+
$1.30682
506+
$1.08903
1,012+
$0.93345
5,016+
$0.82766
10,010+
$0.80899
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1510621060 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.079" (2.00mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Holder
- Contact Length - Mating: 0.141" (3.60mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.413" (10.49mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 98.4µin (2.50µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
9-103326-0-19
Amphenol ICC (FCI)
77311-4AT-02LF
Samtec Inc.
TSW-147-05-G-D
Mill-Max Manufacturing Corp.
852-90-082-30-001000
Samtec Inc.
FTSH-105-04-LM-DH-A-TR
TE Connectivity AMP Connectors
5-146308-3
Molex
0026503039

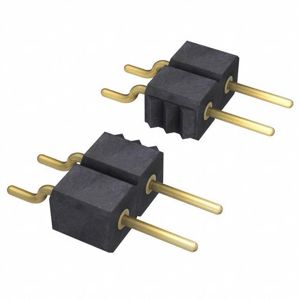

Preci-Dip
