0026482055
Molex
Molex
CONN HEADER VERT 5POS 3.96MM
$2.59
Available to order
Reference Price (USD)
1+
$2.59000
10+
$2.35100
25+
$2.20720
50+
$2.11120
100+
$2.01520
250+
$1.82324
500+
$1.67930
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0026482055 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0026482055 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 5
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 1 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.450" (11.43mm)
- Contact Length - Post: 0.172" (4.37mm)
- Overall Contact Length: 0.750" (19.05mm)
- Insulation Height: 0.500" (12.70mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 20.0µin (0.51µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyester
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Samtec Inc.
ZLTMM-107-69-G-D-502
Molex
2165712003
Würth Elektronik
665305124022
Samtec Inc.
FTE-120-02-G-DV-A-P
Samtec Inc.
TMM-120-01-T-S-SM
Samtec Inc.
FTSH-110-03-L-DV-ES
Preci-Dip
832-80-012-10-001101
Samtec Inc.

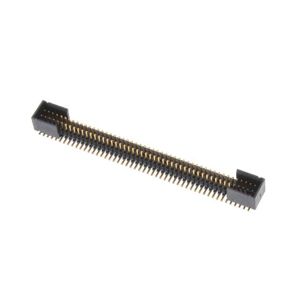

FTE-150-01-G-DV-ES-A
