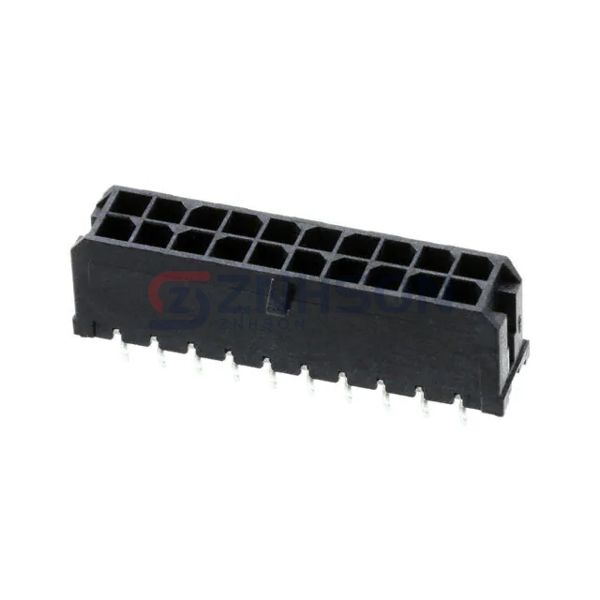

0430452024
Molex
Molex
CONN HEADER VERT 20POS 3MM
$5.17
Available to order
Reference Price (USD)
1+
$4.06000
10+
$3.90100
25+
$3.57600
50+
$3.41360
100+
$3.25100
250+
$2.84464
648+
$2.76335
1,296+
$2.35698
2,592+
$2.19443
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0430452024 from Molex is a high-quality rectangular connector header designed for reliable interconnections in various electronic applications. These male pin headers feature a robust construction, ensuring secure and stable connections. Ideal for PCB mounting, the 0430452024 offers excellent electrical performance and durability. With options for different pin counts and pitches, this connector is versatile for numerous industrial and consumer electronics. Applications include automotive systems, telecommunications equipment, and home appliances. Choose Molex for precision-engineered connectors that meet global standards.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.125" (3.18mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 60.0µin (1.52µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
- Features: Board Guide, Board Lock
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 8A
- Voltage Rating: 600V
Related Products
Samtec Inc.
MMT-109-02-S-SH
Samtec Inc.
TMM-114-01-G-D-RA
Samtec Inc.
TSW-122-23-T-D
Samtec Inc.
FTE-135-03-G-DV-A
Amphenol ICC (FCI)
68001-414HLF
Molex
22-28-8061
Molex
0430451614
Samtec Inc.
ZSS-132-09-G-D-1340
Molex

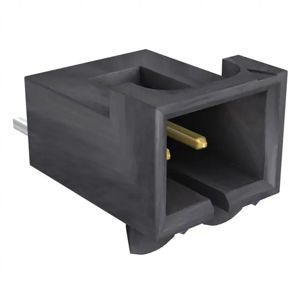

0015913023
