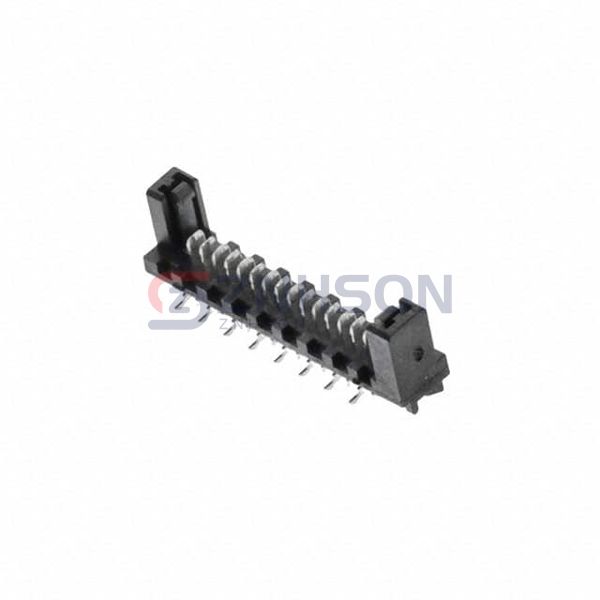

0908160016
Molex
Molex
CONN HEADER SMD 16POS 1.27MM
$2.03
Available to order
Reference Price (USD)
1+
$1.59000
10+
$1.44400
25+
$1.35520
50+
$1.29620
100+
$1.23730
250+
$1.11948
500+
$1.03110
2,016+
$0.85434
4,032+
$0.82488
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 0908160016 by Molex is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 0908160016 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Molex ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Blade
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 16
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Latch Lock
- Contact Length - Mating: 0.083" (2.10mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.333" (8.45mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyphthalamide (PPA), Glass Filled
- Features: Board Guide
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 HB
- Insulation Color: Black
- Current Rating (Amps): 1.2A
- Voltage Rating: 250V
Related Products
Samtec Inc.
TSM-134-02-S-SH-P
Samtec Inc.
TSM-105-01-F-DH-P
Molex
0022286263
Samtec Inc.
TMMH-132-01-T-D
TE Connectivity AMP Connectors
207599-7
Samtec Inc.
TMM-127-01-F-D
TE Connectivity AMP Connectors
9-146274-0-13
Amphenol ICC (FCI)
77317-104-04LF

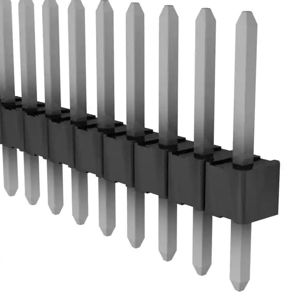

Molex
