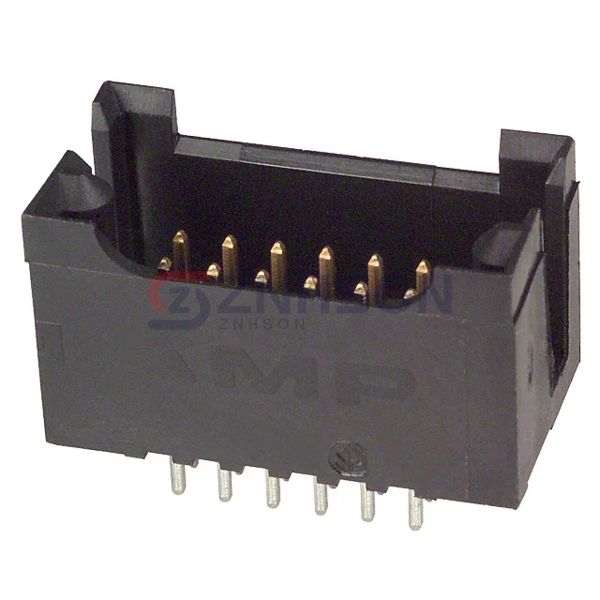

102692-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 12POS 2.54MM
$4.63
Available to order
Reference Price (USD)
1+
$3.68000
80+
$3.08700
160+
$2.94000
560+
$2.49900
1,040+
$2.13150
5,040+
$1.91100
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 102692-1 by TE Connectivity AMP Connectors is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 102692-1 supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. TE Connectivity AMP Connectors ensures each connector meets rigorous quality standards for global compliance.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: -
- Contact Length - Post: 0.180" (4.57mm)
- Overall Contact Length: -
- Insulation Height: 0.550" (13.97mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin-Lead
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic, Glass Filled
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 2A
- Voltage Rating: 250VAC
Related Products
Harwin Inc.
M80-8662022
Mill-Max Manufacturing Corp.
800-10-057-61-001000
Molex
0022032042
Samtec Inc.
FTSH-104-01-L-DV-A-P
Samtec Inc.
TMMH-125-01-G-D
KinnexA
KWAF-WSD-02251-02-XXX
Preci-Dip
800-10-044-20-001101
Preci-Dip
892-18-022-10-002101
Oupiin

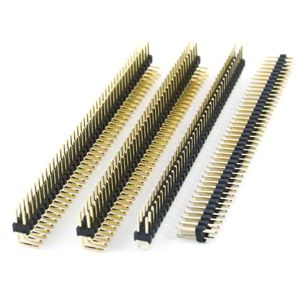

2011-2X02G00SB
