112809-75
Amphenol RF
Amphenol RF

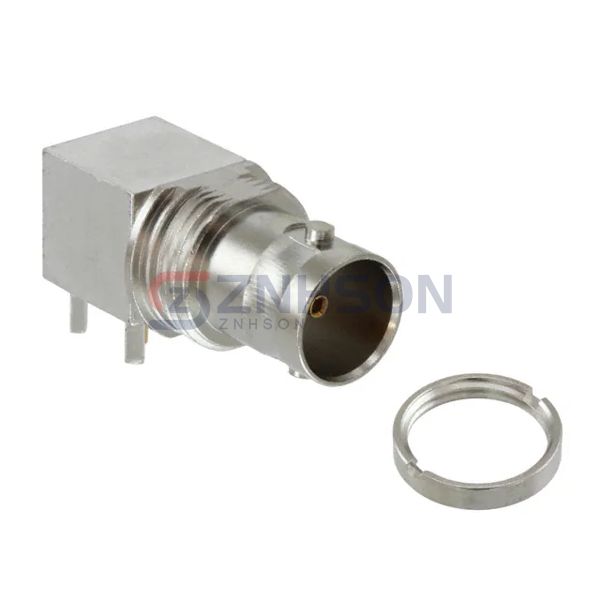

CONN BNC JACK R/A 75 OHM PCB
$23.27
Available to order
Reference Price (USD)
1+
$20.02000
10+
$18.06900
25+
$17.31200
50+
$16.23000
100+
$15.68900
250+
$14.82340
500+
$14.39060
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 112809-75 from Amphenol RF represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 112809-75 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: BNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 75Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Bayonet Lock
- Frequency - Max: 3 GHz
- Number of Ports: 1
- Features: -
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
