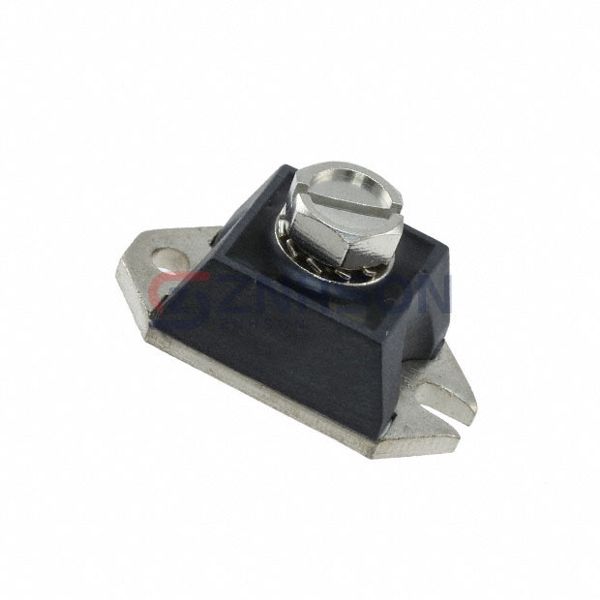

123NQ080R-1
SMC Diode Solutions
SMC Diode Solutions
DIODE SCHOTTKY 80V 120A PRM1-1
$26.74
Available to order
Reference Price (USD)
594+
$27.60394
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 123NQ080R-1 from SMC Diode Solutions is a premium single rectifier diode that stands out in the Diodes - Rectifiers - Single segment. With excellent thermal characteristics and high reverse voltage capability, it is perfect for high-frequency applications like RF modules and wireless charging systems. This diode is also widely used in automotive lighting and HVAC controls, ensuring efficient energy conversion. SMC Diode Solutions's dedication to quality means the 123NQ080R-1 meets rigorous standards, providing dependable performance for both commercial and industrial applications.
Specifications
- Product Status: Active
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 80 V
- Current - Average Rectified (Io): 120A
- Voltage - Forward (Vf) (Max) @ If: 910 mV @ 120 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 3 mA @ 80 V
- Capacitance @ Vr, F: 2650pF @ 5V, 1MHz
- Mounting Type: Chassis Mount
- Package / Case: HALF-PAK
- Supplier Device Package: PRM1-1 (Half Pak Module)
- Operating Temperature - Junction: -55°C ~ 175°C
Related Products
Diotec Semiconductor
DD300
Comchip Technology

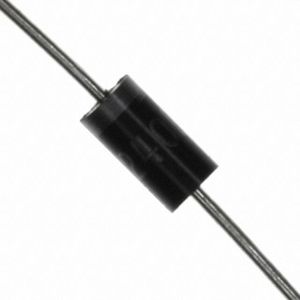

SB280E-G
Taiwan Semiconductor Corporation

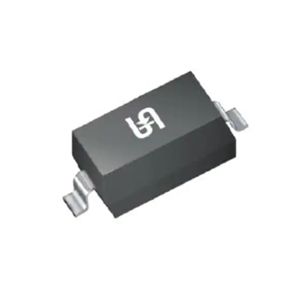

B0540W RHG
Comchip Technology

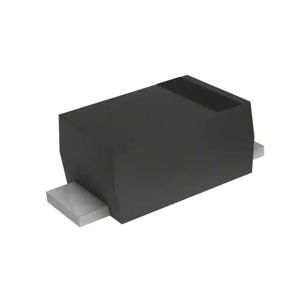

CDBW140-G
onsemi

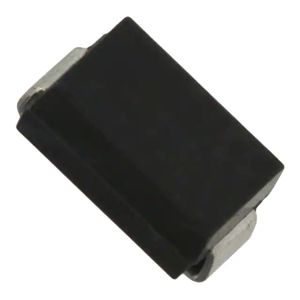

ES1H
Diodes Incorporated

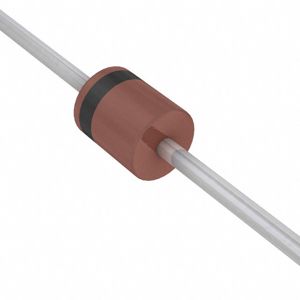

D6G-T
onsemi
FFSB10120A-F085
Panjit International Inc.

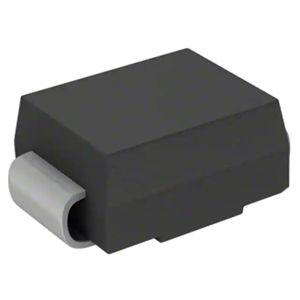

S2B_R1_00001
