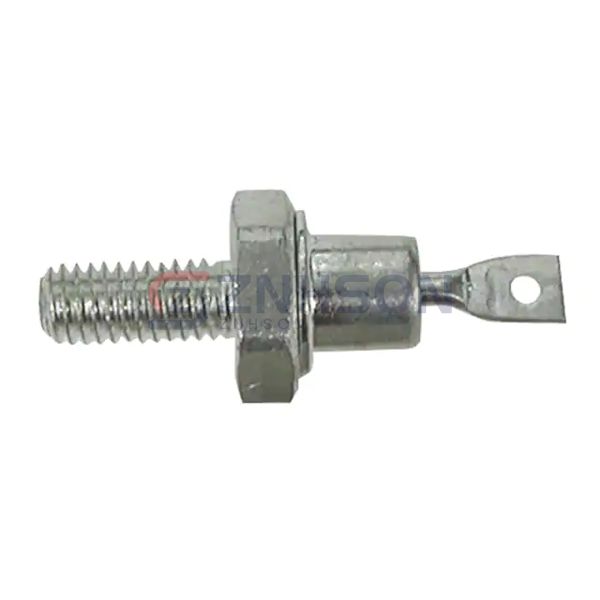

1N3999R
Solid State Inc.
Solid State Inc.
10 WATT ZENER DO-4
$8.00
Available to order
Reference Price (USD)
1+
$8.00000
500+
$7.92
1000+
$7.84
1500+
$7.76
2000+
$7.68
2500+
$7.6
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N3999R from Solid State Inc. is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1N3999R is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 6.8 V
- Tolerance: ±10%
- Power - Max: 10 W
- Impedance (Max) (Zzt): 1.2 Ohms
- Current - Reverse Leakage @ Vr: 10 µA @ 2 V
- Voltage - Forward (Vf) (Max) @ If: 1.5 V @ 2 A
- Operating Temperature: -65°C ~ 175°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: DO-203AA, DO-4, Stud
- Supplier Device Package: DO-4
