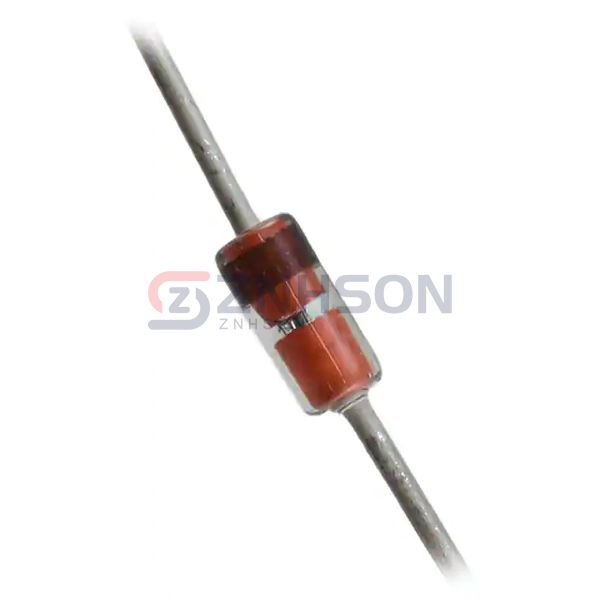

1N5244B
onsemi
onsemi
DIODE ZENER 14V 500MW DO35
$0.16
Available to order
Reference Price (USD)
1+
$0.14000
10+
$0.12300
100+
$0.06720
500+
$0.04136
1,000+
$0.02820
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 1N5244B from onsemi is a high-performance Zener diode designed for precision voltage regulation in various electronic circuits. As part of the Discrete Semiconductor Products category, this single Zener diode offers exceptional stability and reliability, making it ideal for applications requiring consistent voltage reference. Key features include low impedance, sharp breakdown characteristics, and excellent temperature stability. These diodes are widely used in power supplies, voltage clippers, and surge protectors. For instance, the 1N5244B is commonly employed in automotive electronics, telecommunications equipment, and industrial control systems to ensure stable voltage levels and protect sensitive components from voltage spikes.
Specifications
- Product Status: Active
- Voltage - Zener (Nom) (Vz): 14 V
- Tolerance: ±5%
- Power - Max: 500 mW
- Impedance (Max) (Zzt): 15 Ohms
- Current - Reverse Leakage @ Vr: 100 nA @ 10 V
- Voltage - Forward (Vf) (Max) @ If: 1.2 V @ 200 mA
- Operating Temperature: -65°C ~ 200°C
- Mounting Type: Through Hole
- Package / Case: DO-204AH, DO-35, Axial
- Supplier Device Package: DO-35
Related Products
Microchip Technology
CDLL6342
Microchip Technology
JANTX1N4572A-1/TR
Microchip Technology
SMBJ5925A/TR13
Diotec Semiconductor
Z1SMA100
Vishay General Semiconductor - Diodes Division
BZD27C110P-M3-08
Vishay General Semiconductor - Diodes Division
BZX84C3V3-HE3-18
Central Semiconductor Corp
CMDZ5248B TR PBFREE
Taiwan Semiconductor Corporation

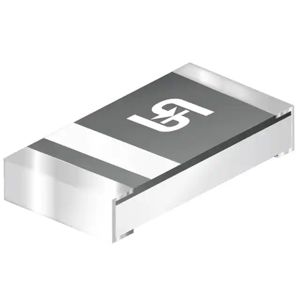

BZS55C13 RXG
Nexperia USA Inc.

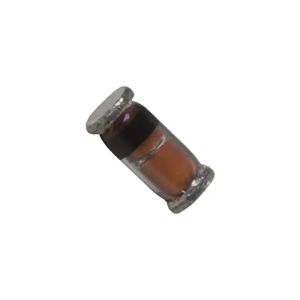

BZV55-B3V0,115
