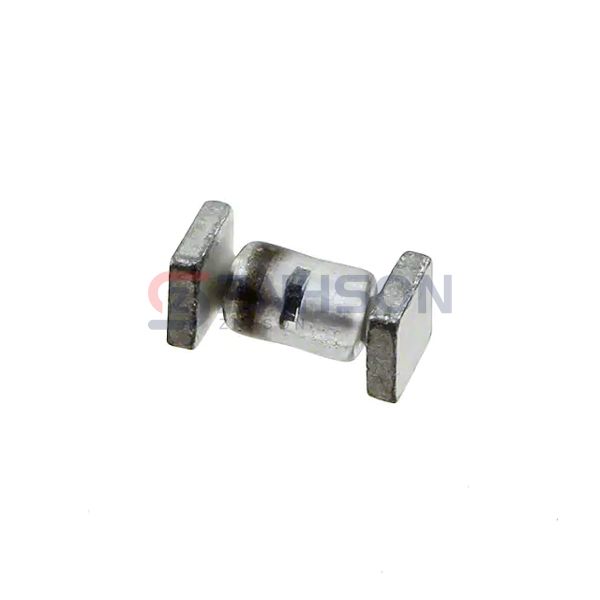

1N5820US
Microchip Technology
Microchip Technology
DIODE SCHOTTKY 20V 3A B-MELF
$0.00
Available to order
Reference Price (USD)
100+
$14.12700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with the 1N5820US single rectifier diode by Microchip Technology. As a vital component in the Discrete Semiconductor Products range, this diode offers superior rectification with minimal power loss. Its high-temperature tolerance and fast switching make it ideal for use in electric vehicles, industrial automation, and renewable energy systems. The 1N5820US is also a preferred choice for consumer electronics, including TVs and audio equipment, where efficiency and reliability are paramount. Choose Microchip Technology's 1N5820US for advanced semiconductor solutions.
Specifications
- Product Status: Discontinued at Digi-Key
- Diode Type: Schottky
- Voltage - DC Reverse (Vr) (Max): 20 V
- Current - Average Rectified (Io): 3A
- Voltage - Forward (Vf) (Max) @ If: 500 mV @ 3 A
- Speed: Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr): -
- Current - Reverse Leakage @ Vr: 100 µA @ 20 V
- Capacitance @ Vr, F: -
- Mounting Type: Surface Mount
- Package / Case: SQ-MELF, B
- Supplier Device Package: B, SQ-MELF
- Operating Temperature - Junction: -65°C ~ 125°C
