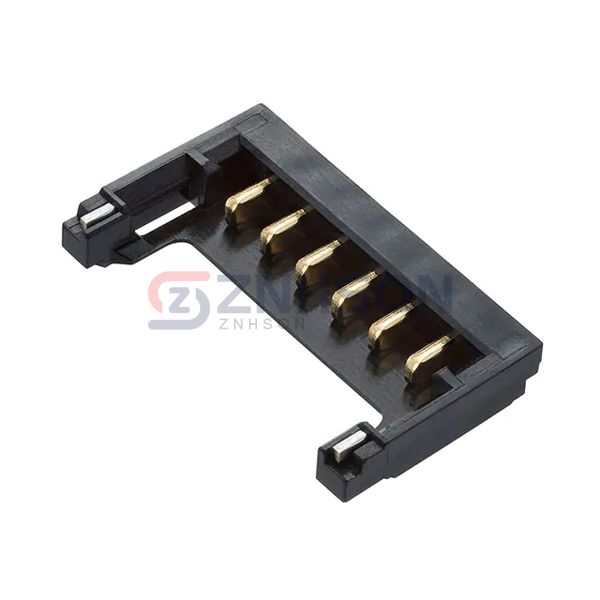

2121340006
Molex
Molex
PICO-EZMATE PLUS1.0 PLUGASSY ETP
$1.27
Available to order
Reference Price (USD)
1+
$1.27000
500+
$1.2573
1000+
$1.2446
1500+
$1.2319
2000+
$1.2192
2500+
$1.2065
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2121340006 by Molex is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Molex delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Plug
- Contact Type: Tab
- Pitch - Mating: 0.039" (1.00mm)
- Number of Positions: 6
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Surface Mount, Right Angle
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.047" (1.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 3.94µin (0.100µm)
- Contact Finish - Post: Gold
- Contact Material: Copper Alloy
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Solder Retention
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC/DC
