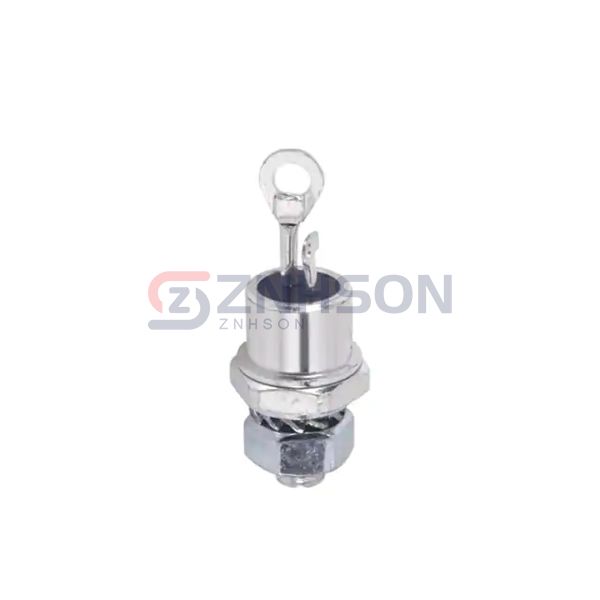

2N5206
Solid State Inc.
Solid State Inc.
TO 48 22 AMP SCR
$10.00
Available to order
Reference Price (USD)
1+
$10.00000
500+
$9.9
1000+
$9.8
1500+
$9.7
2000+
$9.6
2500+
$9.5
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2N5206 from Solid State Inc. redefines reliability in the Thyristors - SCRs category of Discrete Semiconductor Products. With its unique reverse blocking capability and high temperature operation range, this SCR is indispensable for power electronics. Typical uses include uninterruptible power supplies, induction heating, and plasma cutting machines. For example, it's essential in semiconductor manufacturing equipment. Solid State Inc.'s 2N5206 combines advanced engineering with practical functionality.
Specifications
- Product Status: Active
- Voltage - Off State: 1 kV
- Voltage - Gate Trigger (Vgt) (Max): 3 V
- Current - Gate Trigger (Igt) (Max): 40 mA
- Voltage - On State (Vtm) (Max): 2.3 V
- Current - On State (It (AV)) (Max): -
- Current - On State (It (RMS)) (Max): 35 A
- Current - Hold (Ih) (Max): 100 mA
- Current - Off State (Max): 2 mA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 300A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 125°C (TJ)
- Mounting Type: Stud Mount
- Package / Case: TO-208AA, TO-48-3, Stud
- Supplier Device Package: TO-48
