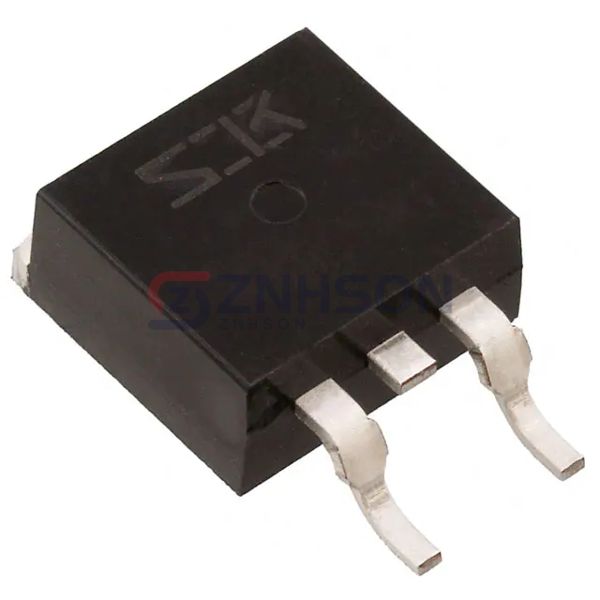

2SK3800
Sanken
Sanken
MOSFET N-CH 40V 70A TO220S
$2.13
Available to order
Reference Price (USD)
1,000+
$1.58200
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Meet the 2SK3800 by Sanken, a high-efficiency single MOSFET engineered for superior performance in the Discrete Semiconductor Products arena. Featuring low gate drive requirements and high switching frequency, this component is perfect for RF applications, power tools, and HVAC systems. The 2SK3800 stands out in the Transistors - FETs, MOSFETs - Single category for its rugged design and consistent output. Choose quality, choose Sanken.
Specifications
- Product Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 40 V
- Current - Continuous Drain (Id) @ 25°C: 70A (Ta)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 6mOhm @ 35A, 10V
- Vgs(th) (Max) @ Id: 4V @ 1mA
- Gate Charge (Qg) (Max) @ Vgs: -
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 5100 pF @ 10 V
- FET Feature: -
- Power Dissipation (Max): 80W (Tc)
- Operating Temperature: 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: TO-220S
- Package / Case: TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Related Products
Fairchild Semiconductor
NDC631N
Microchip Technology
APT20M38BVRG
Infineon Technologies
SPS04N60C3AKMA1
Rectron USA
RM3N700S4
Vishay Siliconix
SIR184LDP-T1-RE3
Panjit International Inc.
PJA138K_R1_00001
Rectron USA
RM2333A
IXYS
IXTA02N250HV
onsemi

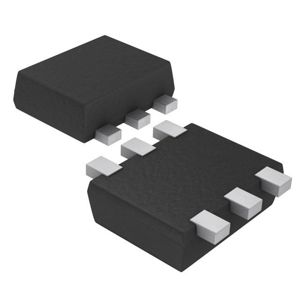

MCH6344-TL-H
