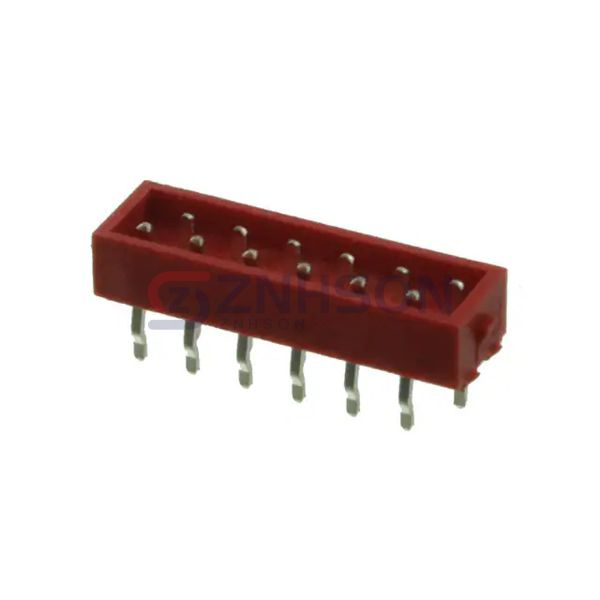

3522-12-0100-99
CNC Tech
CNC Tech
CONN HEADER VERT 12POS 2.54MM
$1.40
Available to order
Reference Price (USD)
1+
$1.22000
10+
$1.07100
100+
$0.92400
500+
$0.75600
1,600+
$0.63000
6,400+
$0.58800
11,200+
$0.55860
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3522-12-0100-99 by CNC Tech is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. CNC Tech delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 12
- Number of Rows: 2
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.146" (3.70mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA9T), Nylon 9T
- Features: -
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: -
- Current Rating (Amps): 1A
- Voltage Rating: 500VAC
