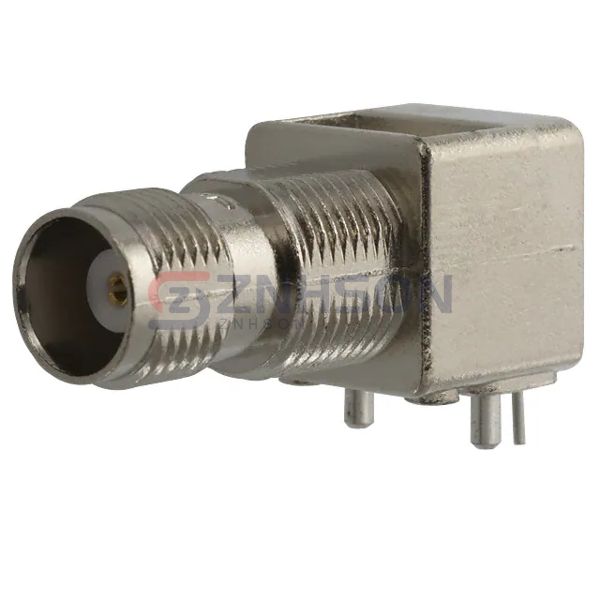

5227839-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN TNC JACK R/A 50 OHM PCB
$12.93
Available to order
Reference Price (USD)
1+
$10.23000
10+
$9.78800
25+
$8.89840
50+
$8.45360
100+
$8.23110
250+
$7.34120
500+
$6.89630
1,000+
$6.09543
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5227839-1 from TE Connectivity AMP Connectors represents the pinnacle of Coaxial Connectors (RF) innovation. This series incorporates temperature-compensated designs that maintain stable electrical characteristics across extreme thermal cycles. Featuring industry-leading return loss (>20dB typical) and insertion loss (<0.1dB per connection), these connectors are ideal for sensitive measurement applications. The product family includes field-installable, panel-mount, and PCB receptacle variants. Primary application areas: Military radar systems Quantum cascade lasers EMC test chambers Cellular base station radios. The 5227839-1 variant offers unique angled cable exits that simplify routing in space-constrained equipment enclosures while maintaining impedance control.
Specifications
- Product Status: Active
- Connector Style: TNC
- Connector Type: Jack, Female Socket
- Contact Termination: Solder
- Shield Termination: Solder
- Impedance: 50Ohm
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Mounting Feature: Bulkhead - Front Side Nut
- Cable Group: -
- Fastening Type: Threaded
- Frequency - Max: 4 GHz
- Number of Ports: 1
- Features: Board Guide
- Housing Color: Silver
- Ingress Protection: -
- Center Contact Material: Phosphor Bronze
