628-7W2-224-5TB
EDAC Inc.
EDAC Inc.

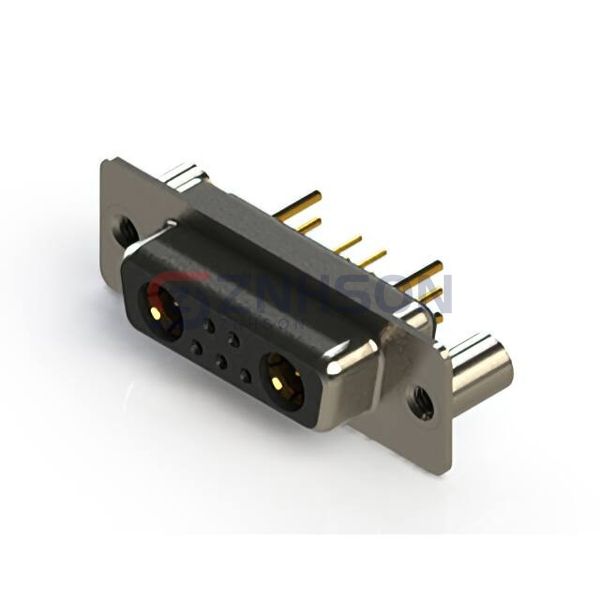

CONN D-SUB RCPT 7POS VERT SLDR
$7.94
Available to order
Reference Price (USD)
1+
$7.94480
500+
$7.865352
1000+
$7.785904
1500+
$7.706456
2000+
$7.627008
2500+
$7.54756
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc. presents the 628-7W2-224-5TB D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 628-7W2-224-5TB is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 7 (5 + 2 Coax)
- Number of Rows: 2
- Mounting Type: Through Hole
- Shell Size, Connector Layout: 2 (DA, A) - 7W2
- Contact Type: Coax and Signal
- Flange Feature: Board Side (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): -
- Backset Spacing: -
- Features: Shielded
