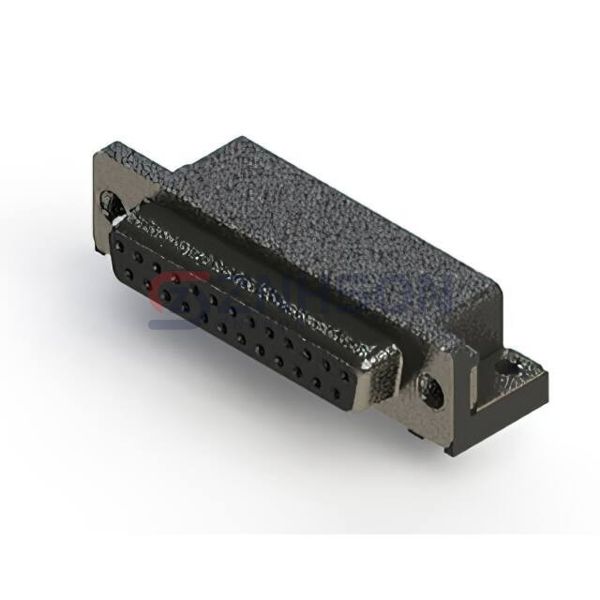

630-025-340-515
EDAC Inc.
EDAC Inc.
630 SERIES RIGHT ANGLE D-SUB REC
$2.87
Available to order
Reference Price (USD)
1+
$2.87042
500+
$2.8417158
1000+
$2.8130116
1500+
$2.7843074
2000+
$2.7556032
2500+
$2.726899
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 630-025-340-515 D-Sub series by EDAC Inc. sets new benchmarks in the Connectors and Interconnects category. These high-density connectors pack up to 104 contacts in compact DA-26 shells while maintaining 500VAC isolation. Key applications include flight data recorders, nuclear power plant controls, and underground mining equipment where space efficiency and reliability are critical. The 630-025-340-515 differentiates itself with integrated grounding lugs, removable contact modules, and optional potting for environmental sealing. Electrical engineers value these connectors for their low insertion force design and compatibility with automated assembly processes.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 15.0µin (0.38µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 3A per Contact
- Backset Spacing: 0.409" (10.40mm)
- Features: Mounting Brackets, Shielded
Related Products
EDAC Inc.
630-17W5640-7N1
EDAC Inc.
630-7W2-250-2N6
EDAC Inc.
628-5W1-624-2T3
EDAC Inc.
628-17W5224-1T6
EDAC Inc.
627-47W1622-2TA
Amphenol ICC (Commercial Products)
L717SDEH09PC309
EDAC Inc.
627-M09-320-WN4
Positronic
DD15M10Z0Z/AA
EDAC Inc.

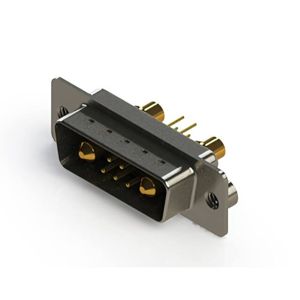

627-7W2-624-4N2
