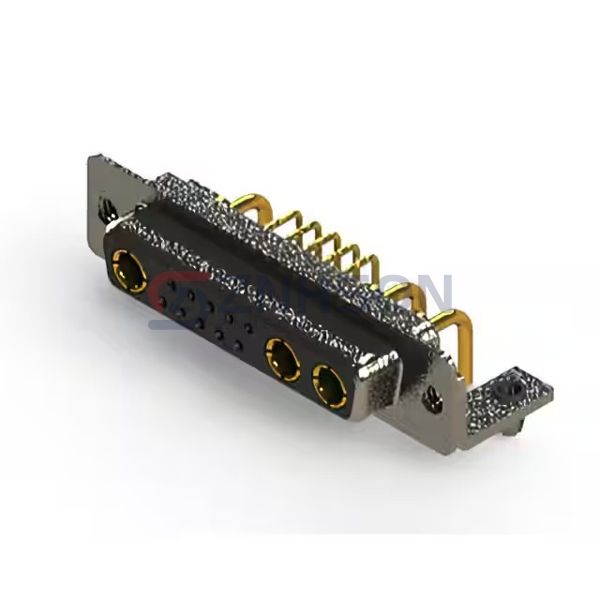

630-13W3640-1NB
EDAC Inc.
EDAC Inc.
CONN D-SUB RCPT 13POS R/A SLDR
$21.65
Available to order
Reference Price (USD)
1+
$21.64944
500+
$21.4329456
1000+
$21.2164512
1500+
$20.9999568
2000+
$20.7834624
2500+
$20.566968
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover the versatility of EDAC Inc.'s 630-13W3640-1NB D-Sub connectors - essential components in modern interconnect systems. Our catalog showcases these connectors' unique combination of standard and reverse gender configurations with mixed layouts (power+signal+coax). The 630-13W3640-1NB excels in medical imaging devices, semiconductor manufacturing equipment, and renewable energy systems. Specific use cases include MRI machine interfaces, wafer stepper connections, and solar inverter communications. These RoHS-compliant connectors feature color-coded shells for easy identification and support both crimp and insulation displacement contact styles.
Specifications
- Product Status: Active
- Connector Style: D-Sub, Combo
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 13 (10 + 3 Power)
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B) - 13C3, 13W3
- Contact Type: Signal and Power
- Flange Feature: Housing/Shell (M3)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Nickel Plated
- Contact Finish: Gold
- Contact Finish Thickness: 30.0µin (0.76µm)
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A, 10A
- Backset Spacing: 0.370" (9.40mm)
- Features: Board Lock, Mounting Brackets
Related Products
EDAC Inc.
627-7W2-624-7NC
EDAC Inc.
630-2W2-240-4N5
EDAC Inc.
630W5W5-140-2N3
EDAC Inc.
638-015-632-048
EDAC Inc.

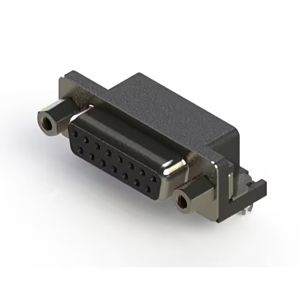

622-015-260-043
EDAC Inc.

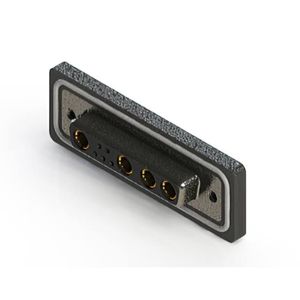

628W9W4-624-4N2
EDAC Inc.

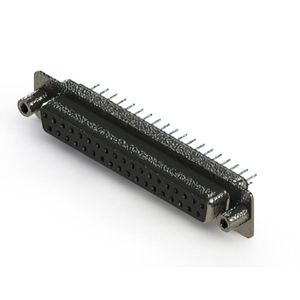

628-037-620-248
PEI-Genesis
DD15S20JT20
EDAC Inc.

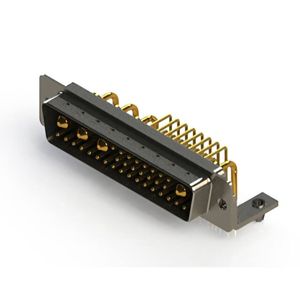

629-36W4240-1N3
