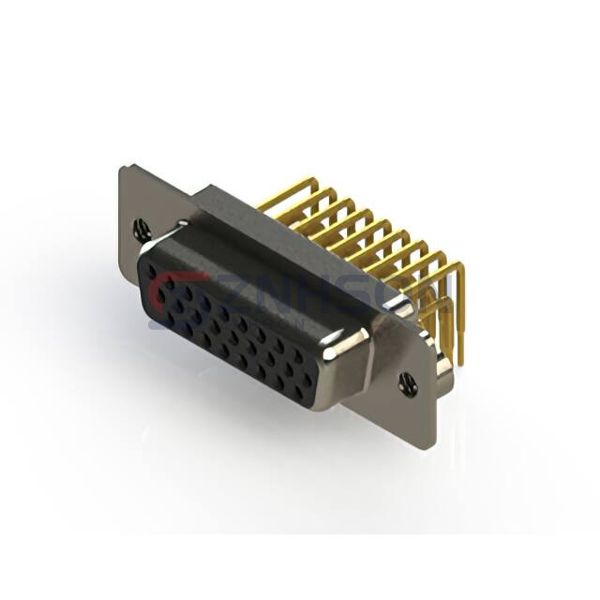

634-M26-263-BT2
EDAC Inc.
EDAC Inc.
634M SERIES RIGHT ANGLE D-SUB
$9.03
Available to order
Reference Price (USD)
1+
$9.03260
500+
$8.942274
1000+
$8.851948
1500+
$8.761622
2000+
$8.671296
2500+
$8.58097
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
EDAC Inc.'s 634-M26-263-BT2 redefines D-Sub connector performance with patented contact geometry that reduces signal loss by 30%. As featured in our Interconnects selection, these connectors incorporate hybrid designs combining copper alloy and beryllium copper contacts. The 634-M26-263-BT2 is transforming data center inter-rack connections, electric vehicle charging systems, and smart grid infrastructure. Notable implementations include server backplane interfaces, battery management system communications, and substation monitoring networks. These connectors meet IEEE 1394 and USB 2.0 specifications while offering superior EMI containment compared to conventional designs.
Specifications
- Product Status: Active
- Connector Style: D-Sub, High Density
- Connector Type: Receptacle, Female Sockets
- Number of Positions: 26
- Number of Rows: 3
- Mounting Type: Board Edge, Through Hole, Right Angle
- Shell Size, Connector Layout: 2 (DA, A) High Density
- Contact Type: Signal
- Flange Feature: Housing/Shell (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: Flash
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 5A per Contact
- Backset Spacing: 0.350" (8.89mm)
- Features: Shielded
