67997-404HLF

Amphenol ICC (FCI)

Manufacturer

Amphenol ICC (FCI)

Description:

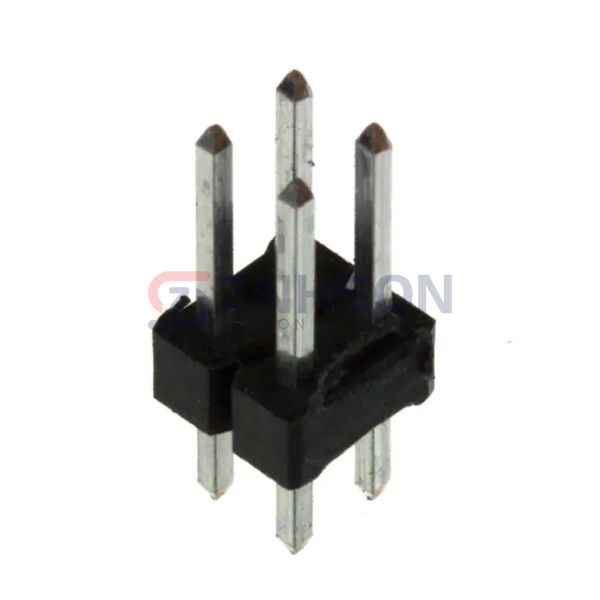

CONN HEADER VERT 4POS 2.54MM

Datasheet:

67997-404HLF Datasheet

$0.26

Available to order

Reference Price (USD)

$0.20000

10+

$0.19200

100+

$0.13550

500+

$0.11616

1,000+

$0.09680

5,000+

$0.08712

10,000+

$0.07986

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 67997-404HLF by Amphenol ICC (FCI) is a premium rectangular connector header designed for male pin connections. Engineered for precision, these headers offer low insertion loss and high mating cycles. Perfect for high-density PCB applications, the 67997-404HLF supports various configurations to meet diverse needs. Its applications span across data communication, military equipment, and renewable energy systems. Amphenol ICC (FCI) ensures each connector meets rigorous quality standards for global compliance.

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 4
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.230" (5.84mm)
Contact Length - Post: 0.120" (3.05mm)
Overall Contact Length: 0.450" (11.43mm)
Insulation Height: 0.100" (2.54mm)
Contact Shape: Square
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 100.0µin (2.54µm)
Contact Finish - Post: Tin
Contact Material: Phosphor Bronze
Insulation Material: -
Features: -
Operating Temperature: -65°C ~ 130°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: -
