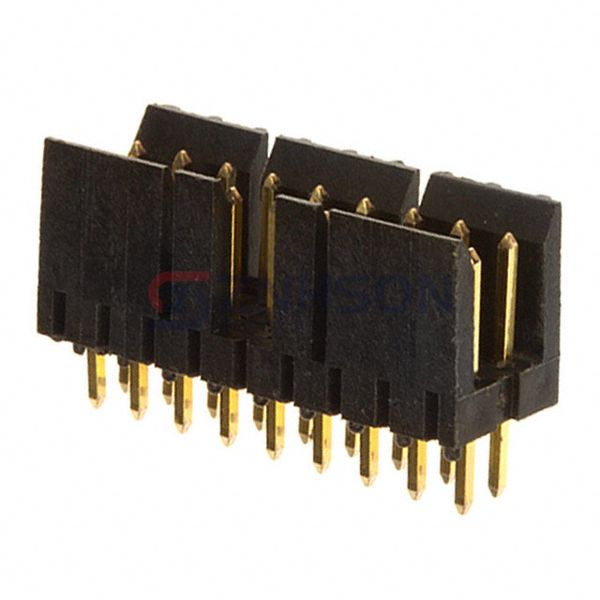

69168-118HLF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 18POS 2.54MM
$2.71
Available to order
Reference Price (USD)
1+
$2.16000
10+
$1.96200
100+
$1.68210
500+
$1.40176
1,000+
$1.20150
5,000+
$1.06533
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 69168-118HLF male pin header by Amphenol ICC (FCI) offers a dependable solution for rectangular connectors. Designed for easy integration, these headers ensure consistent connectivity in demanding environments. Features include high-temperature resistance and superior contact stability. Applications range from industrial machinery to smart home systems. Choose Amphenol ICC (FCI) for connectors that combine innovation with durability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.900" (22.86mm)
- Insulation Height: 0.386" (9.80mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
