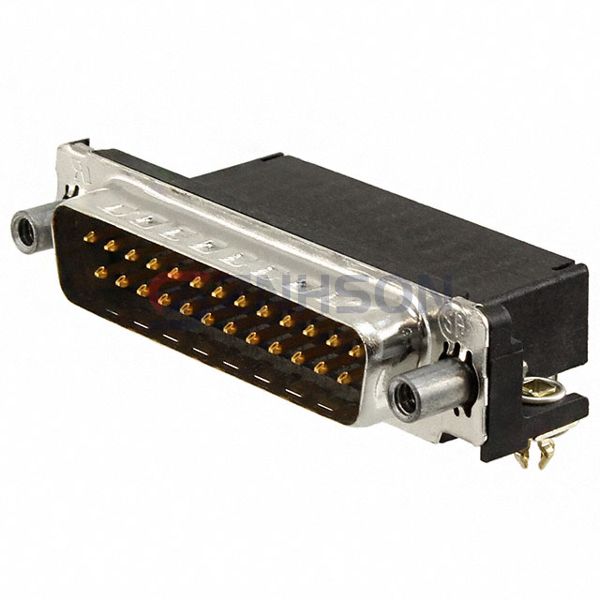

747834-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN D-SUB PLUG 25POS R/A SLDR
$38.23
Available to order
Reference Price (USD)
350+
$29.80169
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
TE Connectivity AMP Connectors presents the 747834-6 D-Sub connector family - premium interconnect components for professional electronics. Characterized by their distinctive D-shaped metal shield, these connectors offer 5A current rating and 1000V dielectric strength. Our Connectors catalog highlights their mixed-contact capability (combining power and signal contacts) and solder cup/PCB termination options. The 747834-6 is particularly effective in test & measurement instruments, broadcast equipment, and industrial control panels. Specific implementations include oscilloscope interfaces, PLC connections, and CNC machine wiring where consistent signal integrity is paramount.
Specifications
- Product Status: Active
- Connector Style: D-Sub
- Connector Type: Plug, Male Pins
- Number of Positions: 25
- Number of Rows: 2
- Mounting Type: Through Hole, Right Angle
- Shell Size, Connector Layout: 3 (DB, B)
- Contact Type: Signal
- Flange Feature: Mating Side, Female Screwlock (4-40)
- Termination: Solder
- Primary Material: -
- Shell Material, Finish: Steel, Tin Plated
- Contact Finish: Gold
- Contact Finish Thickness: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Current Rating (Amps): 6A
- Backset Spacing: 0.590" (14.99mm)
- Features: Board Lock, Ground Strap, Grounding Indents
