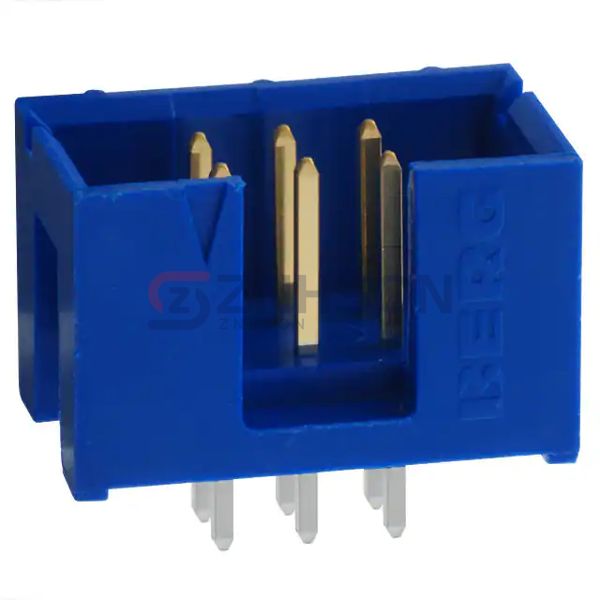

75869-131LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 6POS 2.54MM
$0.88
Available to order
Reference Price (USD)
1+
$0.74000
10+
$0.69700
100+
$0.53450
500+
$0.46480
1,000+
$0.38346
5,000+
$0.33698
10,000+
$0.31374
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 75869-131LF by Amphenol ICC (FCI) is a versatile rectangular connector header designed for male pin connections. With a focus on quality and precision, these headers support various PCB layouts and configurations. Ideal for applications in robotics, power supplies, and audio equipment. Amphenol ICC (FCI) delivers connectors that meet the needs of modern electronics with unmatched reliability.
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 6
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.236" (6.00mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: -
- Insulation Height: 0.377" (9.57mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic, Glass Filled
- Features: Keying Slot
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): -
- Voltage Rating: -
Related Products
Amphenol ICC (Commercial Products)
G881A24001TEU
Preci-Dip
450-80-206-00-106101
Preci-Dip
830-10-024-10-001101
Molex
1720650306
Preci-Dip
800-V3-052-30-001101
Samtec Inc.
TMM-114-04-L-D-SM-P
Hirose Electric Co Ltd
DF60-2P-10.16DS(26)
Molex
0015800463

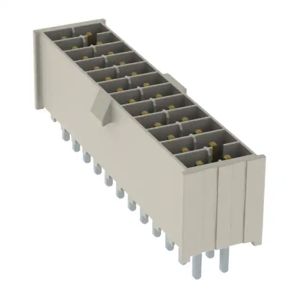

Samtec Inc.
